Specifications

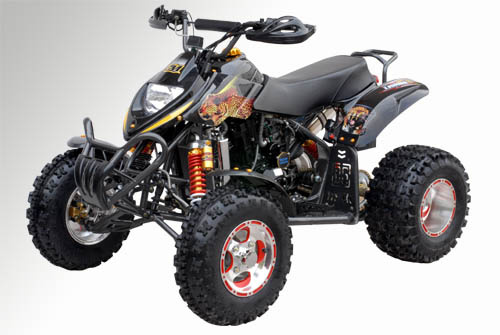

| Prod Model: | 250ST-6 |
|---|
Product Description
Engine:1) Displacement: 230ml
2) Engine style: Single cylinder, 4 stroke, water cooled
3) Bore x stroke: 72x61.2 mm
4) Ignition: CDI
5) Lubrication: Pressure / splash
6) Max. Power: 11.5kw/6500n/mim
7) Max. Torque: 17.5n. M/5500n/mim
8) Impression ratio: 8.8: 1
9) Starting type: Electric
Specification of Cycle:
1) Dimensions: 1, 720 x 1, 180 x 1, 080mm
2) Wheel base: 1, 140mm
3) Front Tread: 1, 000mm
4) Rear Tread: 820mm
5) Seat Height: 780mm
6) Tyre size (front/rear): 21x7-8/20x11-9
7) Ground clearance: 130mm
8) Transmission type: Chain
9) Max speed: ≥75km/h
10) Fuel tank Capability: 5.2L
11) Brake style (front / rear): Drum / Disc
12) Front suspension: Double A arm with Aluminum gas shock
13) Rear Suspension: Independent swing arm
14) Max. Load: 160kg
Packing:
Carton Dimensions: 1, 850 x1, 230 x1, 000mm
Container Capacity: 40HQ: 63units
