Specifications

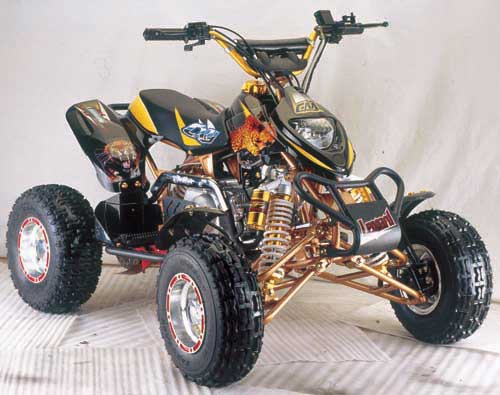

| Prod Model: | 125ST |
|---|
Product Description
Engine:1) Displacement: 102ml
2) Engine style: Single cylinder, 4 stroke, air cooled automatic gear without reverse
3) Bore x stroke: 52 x 49.5
4) Ignition: CDI
5) Lubrication: Pressure / splash
6) Max. Power: 5.25kw/7000n/mim
7) Max. Torque: 6.8n. M/5000n/mim
8) Impression ratio:
9) Starting type: Electric
Specification of Cycle:
1) Dimensions: 1, 300 x 945 x 910mm
2) Wheel base: 920mm
3) Front Tread: 1, 000mm
4) Rear Tread:
5) Seat Height: 610mm
6) Tyre size (front/rear): 15x5-7/15x6.5-7
7) Ground clearance: 90mm
8) Transmission type: Chain
9) Max speed: ≥45km/h
10) Fuel tank Capability: 2.2L
11) Brake style (front / rear): Drum / Disc
12) Front suspension: Double A arm with Aluminum gas shock
13) Rear Suspension: Independent swing arm
14) Max. Load: 75KGS
Packing:
Carton Dimensions: 1160 x770 x650mm
Container Capacity: 40HQ: 120units
