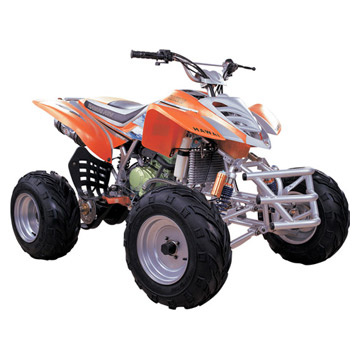

Home Chongqing Yu'an Innovation Technology (Group) Co., Ltd. ATV (250S-11)
| Prod Model: | 250S-11 |
|---|
Product Description
1) Type: single cylinder, water-cooled, 4-stroke2) Ignition mode: CDI
3) Compression proportion: 10.0:1
4) Start mode: electric
5) Fuel tank capacity: 4L
6) Transmission mode: chain
7) Power: 11.5kW/6500rpm
8) Max. torque: 17.5N.m/5500rpm
9) Min. ground clearance: 120mm
10) Max. speed: >75km/h
11) Power source: 12V, 9Ah
12) Transmission: 4 gears with one reverse gear
13) Manual clutch
14) Cylinder size: 63.5 x 62.2mm
15) Engine oil: 1L
16) Lubrication: press splash
17) Displacement: 229.2ml
18) Parking trig: mechanical lock
19) Gas cylinder number: 1
20) Front wheels: 21 x 7-10
21) Rear wheels: 20 x 10-10
22) Break type (F/R): drum / disc
23) Front hanging: integral ballonet absorber
24) Rear hanging: inner ballonet absorber
25) Product dimensions: 1,800 x 1,120 x 1,130mm
26) Wheelbase: 1,150mm
27) Height of seats: 880mm
28) Dry weight: 155kg
29) Load capacity: 150kg
30) Min. turning radius: 2,650mm
31) Max. number of riders: 1
32) Color: red/yellow/blue/green/camouflage
