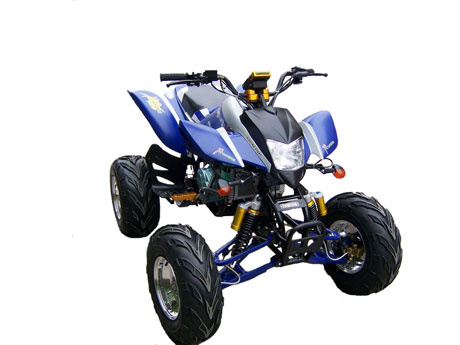

ATV 200cc (JH200ST-8)

Specifications

Prod Model:	JH200ST-8

Product Description

Engine Type: water-Cooled; 4 Stroke;
Cylinder Arrangement1 Cylinder
Compression Ratio: 9.2: 1
Maximum Power (kW/r/m): 10 / 7500
Maximum Torque (N. M/r/min): 13.5 / 6500
Bore x Stroke(mm): 63 x 62
Displacement(cc): 193.3
Ground Clearance (mm): 100
Ignition System: CDI
Starting System: Electrical Starter
Clutch Type: Manual Clutch
Drive System Chain Drive
Transmission Type: 4 Speeds + Reverse; Manual Clutch
Lubrication System: Pressure & Splash
Fuel Tank Capacity (L): 8
Engine Oil Capacity (L): 0.9
Fuel Type: RQ90 (Unleaded)

Overall length x width x height (mm): 1680x115x1120
Seat Height(mm): 850
Wheel Base(mm): 1160
Suspension Type (Front/Rear): Double Wishbone (Independent) / Swing Arm (Monocross); Featuring with Compression-stroke and rebound-stroke damping adjustment;
Shock Absorber Type: (Front/Rear) Hydraulic Shock Absorber/Hydraulic Shock Absorber; Featuring with Compression-stroke and rebound-stroke damping adjustment;
Front/Rear Brake: Disc x 2 / Hydraulic Disc x1;
Front/Rear Tire Size: 21 x 7-8 / 20 x 7-8 (Optional);
Minimum Turning Radius (mm): 2650
Max. Speed (Km/h): 70
Battery Type/Capacity: 12V/9Ah

Dry Weight (Kg): 160
Load Weight (KG): 105
Max. Climbing Degree: 20
Color: Red; Black; Green; Yellow;
Container Loading Capacity: 66pcs/40HQ
Payment Term: T/T or Irrevocable L/C at Sight
Delivery Time: 15 days
