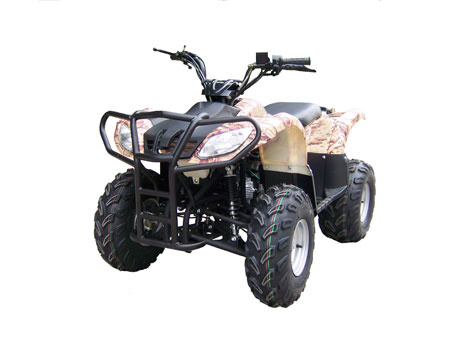

ATV 150cc Utility (JH150ST-6A)

Specifications

Prod Model:	JH150ST-6A

Product Description

Engine Type: Air-Cooled; 4 Stroke;
Cylinder Arrangement 1 Cylinder
Compression Ratio: 9.7
Maximum Power (kW/r/m): 6.1 / 8000
Maximum Torque (N. M/r/min): 8.3 / 7000
Bore x Stroke(mm): 57.4 x 57.8
Displacement(cc): 149.5
Ground Clearance (mm): 160
Ignition System: CDI
Starting System: Electrical Starter
Clutch Type: Automatically
Drive SystemChain Drive
Transmission Type: CVT (Reverse Outside the engine, Reverse + Neutral + Forward)
Lubrication System: Pressure & Splash
Fuel Tank Capacity (L): 8
Engine Oil Capacity (L): 0.9
Fuel Type: RQ90 (Unleaded)
Chassis
Overall length x width x height (mm): 1670x980x1020

Seat Height(mm): 730
Wheel Base(mm): 1110
Suspension Type (Front/Rear): Double Wishbone (Independent) / Swing Arm (Monocross); Featuring with Compression-stroke and rebound-stroke damping adjustment;
Shock Absorber Type: (Front/Rear): Pneumatic Shock Absorber/Hydraulic Shock Absorber; Featuring with Compression-stroke and rebound-stroke damping adjustment;
Front/Rear Brake: Drum x 2 / Hydraulic Disc x1;
Front/Rear Tire Size: 19 x 7-8 / 18 x 9.5-8; Or 21 x 7-8 / 20 x 7-8 (Optional);
Minimum Turning Radius (mm): 3000
Max. Speed (Km/h): 56
Battery Type/Capacity: 12V/9Ah
Others:
Dry Weight (Kg): 150
Load Weight (KG): 100
Max. Climbing Degree: 30
Color: Red; Black; Green; Yellow;
Container Loading Capacity: 63pcs/40HQ
Payment Term: T/T or Irrevocable L/C at Sight
Delivery Time: 15 days
