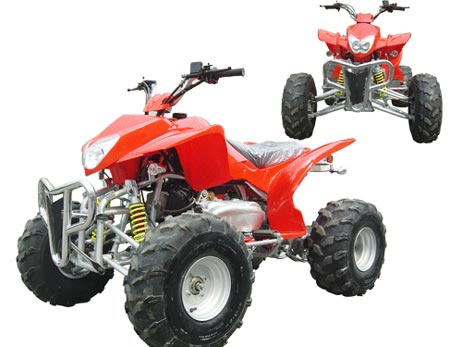

Home Chongqing Joyhon Motorcycle Manufacturing Co., Ltd. ATV 150cc (JH150ST-6A)
Specifications
| Prod Model: | JH150ST-6A |
|---|
Product Description
ATV 150cc Raptor (Big Size) CVT + Neutral + ReverseSpecification
Engine Type: Air-Cooled; 4 Stroke;
Cylinder Arrangement: 1 Cylinder
Compression Ratio: 10: 1
Maximum Power (kW/r/m): 6.7 / 7500
Maximum Torque (N. M/r/min): 8.3 / 6000
Bore x Stroke(mm): 57.4 x 57.8
Displacement(cc): 149.5
Ground Clearance (mm): 160
Ignition System:CDI
Starting System: Electrical Starter
Clutch Type: Automatically
Drive System: Chain Drive
Transmission Type: CVT (Reverse Outside the engine, Reverse + Neutral + Forward)
Lubrication System: Pressure & Splash
Fuel Tank Capacity (L): 8
Engine Oil Capacity (L): 0.9
Fuel Type: RQ90 (Unleaded)
Overall length x width x height (mm): 1700x1000x1060
Seat Height(mm): 730
Wheel Base(mm): 1130
Suspension Type (Front/Rear): Double Wishbone (Independent) / Swing Arm (Monocross);
Shock Absorber Type: (Front/Rear): Hydraulic Shock Absorber/Hydraulic Shock Absorber;
Front/Rear Brake: Drum x 2 / Hydraulic Disc x1;
Front/Rear Tire Size: 19 x 7-8 / 18 x 9.5-8;
Minimum Turning Radius (mm): 3000
Max. Speed (Km/h): 56
Battery Type/Capacity: 2V/9Ah
Others:
Dry Weight (Kg): 140
Load Weight (KG): 100
Max. Climbing Degree: 35
Color: Red; Black; Green; Yellow;
Container Loading Capacity: 66pcs/40HQ
Payment Term: T/T or Irrevocable L/C at Sight
Delivery Time: 15 days
