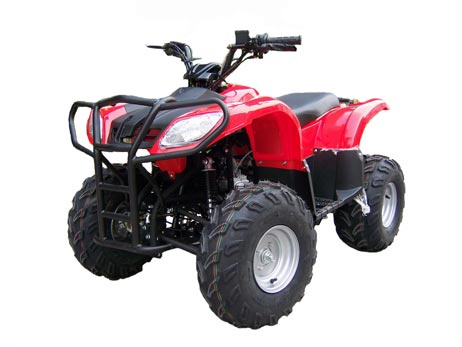

Home Chongqing Joyhon Motorcycle Manufacturing Co., Ltd. ATV 110cc (JH110ST-5)
Specifications
| Prod Model: | JH110ST-5 |
|---|
Product Description
Model Name: JH110ST-15Engine Type: Air-Cooled; 4 Stroke;
Cylinder Arrangement 1 Cylinder
Compression Ratio: 9.1: 1
Maximum Power (kW/r/m): 5.5 / 8000
Maximum Torque (N. M/r/min): 6.5 / 5750
Bore x Stroke(mm): 52.4 x 49.5
Displacement(cc): 107
Ground Clearance (mm): 108
Ignition System: CDI
Starting System: Electrical Starter
Clutch Type: Automatical Clutch
Drive System: Chain Drive
Transmission Type: 3 Speeds + Reverse inside the engine
Lubrication System: Pressure & Splash
Fuel Tank Capacity (L): 7.8
Engine Oil Capacity (L): 0.9
Fuel Type: RQ90 (Unleaded)
Overall length x width x height (mm): 1670x980x1020
Seat Height(mm): 680
Wheel Base(mm): 1024
Suspension Type (Front/Rear): Double Wishbone (Independent) / Swing Arm (Monocross); Featuring with Compression-stroke and rebound-stroke damping adjustment;
Shock Absorber Type: (Front/Rear): Pneumatic Shock absorber/Hydraulic Shock Absorber; Featuring with Compression-stroke and rebound-stroke damping adjustment;
Front/Rear Brake: Drum x 2 / Hydraulic Disc x1;
Or Hydraulic disc x 2 / Hydraulic Disc x1 (Optional);
Front/Rear Tire Size: 19 x 7-8 / 18 x 9.5-8
Minimum Turning Radius (mm): 1750
Max. Speed (Km/h): 60
Battery Type/Capacity: 12V/9Ah
Dry Weight (Kg): 130
Load Weight (KG): 100
Max. Climbing Degree: 20
Color: Red; Black; Green; Yellow; Camoflage
Container Loading Capacity: 66pcs/40HQ
Payment Term: T/T or Irrevocable L/C at Sight
Delivery Time: 15 days
