Specifications

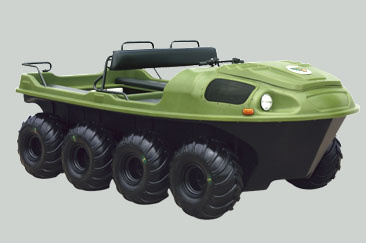

Product Description
China atvsports net!1 Power Engine Model
TJ376QE
JL368Q3 gasoline engine
Type
3-cylinder, inline, 4-stroke, closed loop, Electronic
Control Fuel Injection Gasoline Engine
3-cylinder, inline, 4-stroke, water-cooled, SOHC,
Electronic-fuel injection(EFI)
Cubic Capacity
0.993L
0.796L
Horsepower
52 HP
36 HP
Cooling medium
Water-cooling
Water-cooling
Maximum torque N. M(r/min)
77 3600r/min
60.5 3000~4000r/min
Rated power KW(r/min)
39 5600
26.7 5500
2 Driver
Transmission type
Optional)
A
CVT+2 forward gear reverse gear
B
CVT+3 forward gear reverse gear
Driving mode
Land
8 8all-wheel drive
Aquatic
Double side propeller-driver
3 Operator
Accelerograph
Right hand control throttle, instrument panel to control damper, lighting knob, ignitiom knob
Steering
Steering gripe with braking handle
Brake
Caliper disc hydraulic brake
4 Dimension of vehicle body
Length width highness mm
3180 1620 1190
Wheelbase mm
670
Tread mm
1462
Highness of vehicle bottom from ground mm
200
Minimum turning radius m
0.94
Total weigt
1000kg
Load
Land 6 people or 454kg
Water
4 people or 317kg
Chassis
Cool plate weld polyester coating for rust protection
Body
LLDPE HDPE or DPE
Car shed (optional)
Highness 1282mm
5 Performance
Maximum speed Km/h
Land 60km/h
Aquatic 10km/h
Maximum slope
40
Working environment
All earths surface all day scale of the working temperature 40 C
6 Tyre
Mode 25 11.5-9NHS
Soil pressure 2.1psi(14.5kp)
Tyre 2.1psi(14.5kp)
0.67psi(4.6kp)
Pedrail 0.67psi(4.6kp)
Color (optional) black green blue yellow mix
7 Other
Pedrail (optional)
Round rubber pedrail
Chain-linked nylon pedrail
Fuel capacity
45L cross-linked polyethylene XPE
Body color (optional)
Upper body
Green
Blue
Yellow
Mix
Down body
Black
Black
Black
Black
