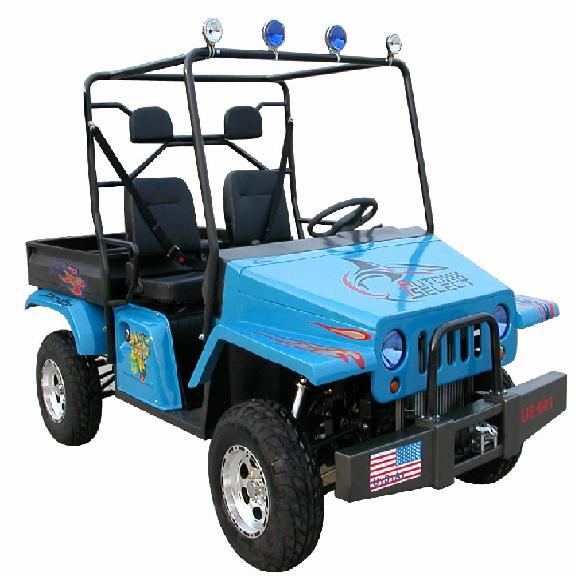

650CC 4X4 EPA Utility Vehicle

Specifications

Prod Model:	650CC-UV03

Product Description

Product Description

DIMENSIONS

Overall length: 116in. (2, 950mm)

Overall width: 62in. (1, 580mm)

Overall height: 72in. (1, 830mm)

Wheelbase: 78in. (1, 950mm)

Front track: 48in. (1, 220mm)

Rear track: 47in. (1, 200mm)

Ground clearance: 11.2in. (280mm)

Seat Height: 3.9in (950mm )

ENGINE

Type: 2 cylinders, 4-stroke, liquid-cooled

Bore x stroke: 76mm x 71mm

Displacement: 644cc

Compression ratio: 8.4: 1

Carburetor: BJH101E

Max. Power: 20.6kW/5, 300rpm

Maximum torque: 44/2, 700~3, 300N. M/r/min

Starting: Electric

Ignition: CDI

Lubrication: Force and splash

Transmission: Manual clutch, 4-shift/reverse

Spark plug: F6T or F6TC

Fuel type: RQ93 (unleaded)

Lubricate oil: SAE-15W/30

CAPACITIES

Turning radius: 157.5 in(4000mm)

Fuel tank: 40.0L

Starting: <5s

Climbing: 20-25

Battery: 12V36Ah

Fuse: 35A

Max speed: 35 miles/h

CHASSIS

Front, Rear brake: Hydraulic disc, right foot control

Front tire: 25*8-12

Rear tire: 25*10-12

Drive Train: 2WD/4WD Shaft

T IRE PRESSURE

Front: 205kpa 2.1kg/ 30psi

Rear: 205kpa 2.1kg/ 30psi

WEIGHT

Max load capacity: 800kg

Net Weight: 630kg

PACKING SIZE(MM): 2800x1560x1150

Shipping info: 4pcs(20' FCL)/8pcs(40' FCL)

Suspension

Front: Double A model, absolute suspension

Rear: Double A model, absolute suspension

Colors

Red, Blue, Green, Brown, Black, Yellow, Army camouflage, Naval camouflage, Maple leaf camouflage
