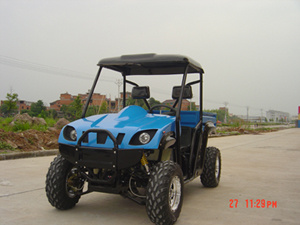

800cc EPA Utility Vehicle (800cc-1)

Specifications

Prod Model:	800cc-1

Product Description

Features:
1) Maximum load: 1000kg
2) Top speed: 120 km/h (or limited as customers require)
3) Engine type: 3-bore, 4-stroke, liquid-cooled
4) Bore X stroke: 68 X 72mm
5) Displacement: 0.796L
6) Carburetor: HGH201
7) Power: 29.5 kW(5500+50r/min)+5%
8) Max. torque: 62N. m/3, 000 - 4, 000r/min
9) Starting mode: electric
10) Starting: <5s
11) Ignition: C. D. I
12) Lubrication: force and splash
13) Transmission: manual clutch, 4 shift / reverse
14) Spark plug: T4196J
15) Plug gap: 0.7 - 0.8mm
16) Fuel tank: 28.0L
17) Compression ratio: 8.7: 1
18) Climbing: 20 - 25 degree
19) Battery: 12V, 36Ah
20) Head light: 12V, 150W / both
21) Tail light: 12V, 80W / both
22) Brake track: <7m@20miles/h
23) Brakes (front / rear): hydraulic disc, right foot control
24) Tires (front / rear): 25X 8-12/ 25X 10-12
25) Front suspension: independent dual A-Arm
26) Rear suspension: longitudenal control arm
27) Final drive: shaft drive
28) Packing size (L x W x H): 2, 840 X 1, 140 X 1100mm
29) Wheelbase: 2, 670mm
30) Front track: 1, 690mm
31) Rear track: 1, 650mm
32) Ground clearance: 280mm
