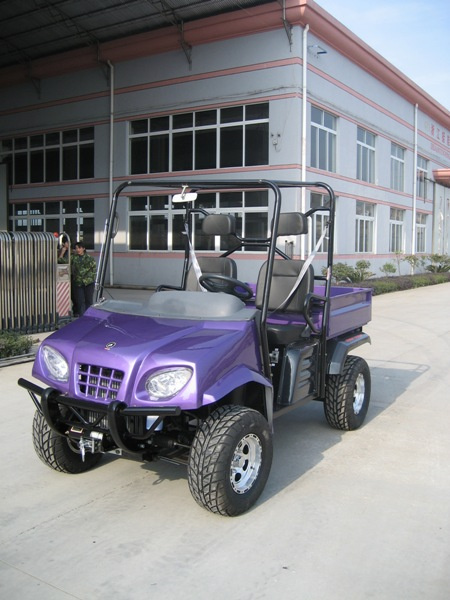

650cc EPA Utility Vehicle (Truck -650CC-A)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
Specifications
| Prod Model: | Utility-Vehicle-650cc-A |
|---|
Product Description
Specification:Type: 2-Bore, 4-Stroke, Liquid-cooled
Bore XStroke: 76mmX71mm
Displacement: 646CC
Compression ratio: 8.4: 1
Carburetor: BJH101E or CSH101E
Max Power: 20.6kw/5300rpm
Maximum Torque: 44/2700~3300Nm/r/min
Starting: -Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: manual clutch, 4 shift/Reverse
Spark Plug: -F6T or F6TC
Plug gap: 0.7+/-0.1mm
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30
Fuel tank: 28.0L
Engine oil: 2900ml
Coolant: 4000ml
Starting: <5s
Climbing: 30 degree
Battery: 12V36Ah
Head Light: 12V 150W/Both
Tail Light: 12V 82W/Both
Fuse: 30A
Brake Track: < 7m @ 20miles/h
Top speed: 58 miles/h (or limited as customers require)
Front, Rear brake: Hydraulic disc, right foot control
Front tire: 25X8-10
Rear tire: 25X10-12
Front Suspension: Independent Dual A-Arm
Rear Suspension: Independent Longitudinal Control Arm
Final Drive: shaft driven
N. W: 420kg
G. W: 450kg
