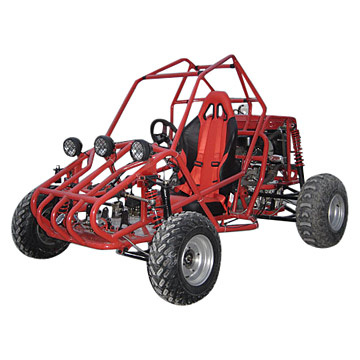

650cc Go Kart (DH650GK-SA)

Specifications

Prod Model:	DH650GK-SA

Product Description

For this EEC Approved 650cc Go Kart
Specifications:
1) Engine: 644ml, double cylinders, water-cooled, 4-stroke
2) Max. Power: 20.6kW / 4, 500rpm
3) Max. Torque: 44N. M / 2, 700 - 3, 300rpm
4) Gears: Foot-control clutch, 4 forward gears with reverse gear
5) Max. Speed: 110km/h
6) Start: Electric
7) Product size (L x W x H): 2, 480x 1, 600 x 1, 600mm
8) N. W.: 300kg
9) Tire sizes: (Fr. ) 25 x 8 - 12", (Rr. ) 25 x 10 - 12"
10) Wheelbase: 2, 000mm
11) Brake: (Fr. ) hydraulic disc + (Rr. ) hydraulic disc
12) Suspension: 4 x double A-arm independent suspension
13) Shock absorber: 4 x Air spring shock absorber
14) Fuel capacity: 12L
15) Min. Ground clearance: 280mm
16) Battery: 12V, 36Ah
17) Available colors: Red, blue, yellow, black, silver, dark green

Outer packing:
Carton dimensions (L x W x H): 2, 480x 1, 300 x 750mm
Disassemble tires and upper frame
Inner firm iron-framework, outer paper carton

Conveyance:
Qty/20' FCL: 6pcs
Qty/40' HQ: 15pcs
