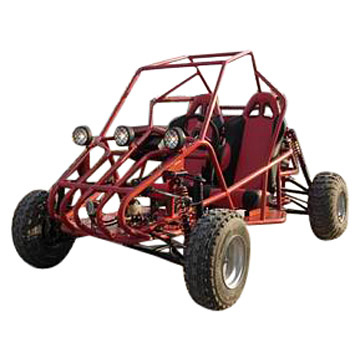

Home Nantong Ding Hong Engine Machinery Co., Ltd. 650cc Go Kart (DH650GK-DA)
| Prod Model: | DH650GK-DA |
|---|
Product Description
Specifications:1) Engine: 644ml, double cylinders, water-cooled, 4-stroke
2) Max. Power: 20.6kW / 4, 500rpm
3) Max. Torque: 44N. M / 2, 700 - 3, 300rpm
4) Gears: Foot-control clutch, 4 forward gears with reverse gear
5) Max. Speed: 110km/h
6) Start: Electric
7) Product size (L x W x H): 2, 480x 1, 600 x 1, 600mm
8) N. W.: 300kg
9) Tire sizes: (Fr. ) 25 x 8 - 10", (Rr. ) 25 x 10 - 10"
10) Wheelbase: 1, 800mm
11) Brake: (Fr. ) hydraulic disc + (Rr. ) hydraulic disc
12) Suspension: 4 x double A-arm independent suspension
13) Shock absorber: 4 x air spring shock absorber
14) Fuel capacity: 24 L
15) Min. Ground clearance: 280mm
16) Battery: 12V, 36Ah
17) Available colors: Red, blue, yellow, black, silver, dark green
Outer packing:
Carton dimensions (L x W x H): 2, 480x 1, 350 x 750mm
Conveyance:
Disassemble tires and upper frame
Inner firm iron-framework, outer paper carton
Qty/20' FCL: 6pcs
Qty/40' FCL (HQ): 15pcs
Established in 2006, Nantong Ding Hong Engine Machinery Co., Ltd. is one of the leading manufacturers of quality go karts and related products in China.
We only produced go karts when the company was just established. Our go karts range from 150cc, 250cc, 650cc, 800cc, to 1100cc, from 2WD to 4WD, and simple chain drive to shaft drive, with fully independent suspension for almost each displacement. This is almost unique in China.
The factory possesses a well-trained technical personnel with excellent capacity of product development and design. Recently, we have 5 high-engineers and 12 technical staff, 60 skillful workers and more than 200 spare part factories as cooperation partners. These assure our timely delivery and good after-sales services, including technical and spare parts support.
Because we are factory-directed, we can bring you the latest generation of high-performance go karts, and able to sell at most competitive prices. Moreover, we have sold our products successfully to many oversea countries, such as the United States, Spain, France, South Africa, and Singapore. All the customers give us quite high appreciation.
To open even larger market, we still look forward to building long-term cooperation relationships with more companies worldwide. Please feel free to contact us for more details.
We only produced go karts when the company was just established. Our go karts range from 150cc, 250cc, 650cc, 800cc, to 1100cc, from 2WD to 4WD, and simple chain drive to shaft drive, with fully independent suspension for almost each displacement. This is almost unique in China.
The factory possesses a well-trained technical personnel with excellent capacity of product development and design. Recently, we have 5 high-engineers and 12 technical staff, 60 skillful workers and more than 200 spare part factories as cooperation partners. These assure our timely delivery and good after-sales services, including technical and spare parts support.
Because we are factory-directed, we can bring you the latest generation of high-performance go karts, and able to sell at most competitive prices. Moreover, we have sold our products successfully to many oversea countries, such as the United States, Spain, France, South Africa, and Singapore. All the customers give us quite high appreciation.
To open even larger market, we still look forward to building long-term cooperation relationships with more companies worldwide. Please feel free to contact us for more details.
