Home Zhejiang A-GO Industrial & Trading Co., Ltd. 50cc ATV(SA50-B2)

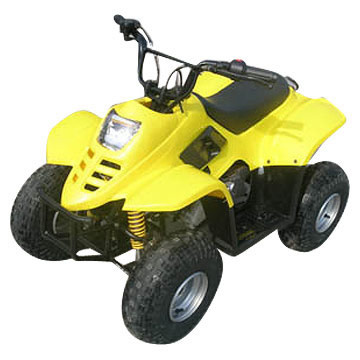

50cc ATV(SA50-B2)

50cc ATV(SA50-B2)
Price: Negotiable
Min Order: 1

Specifications

Product Description

Dimension 1230 x 730 x 860 mm
Net Weight: 63Kgs
Max Speed: > 30km/h
Climbing ability: > 15
Degree Max loading: 80kgs
Distance between axles: 690 mm
Distance between front wheels: 420 mm
Distance between rear wheels: 510 mm
Ground clearance: 110 mm
Specification of Front Wheel: 145/70-6
Specification of rear Wheel: 145/70-6
Type of Engine: 50cc single-cylinder, 4 stroke
Displacement: 49ml
Rated Power and Rotate Speed: 2.3kw/8500rpm.
Approx Max Torgue and Rotate Speed: 2.7N. M/6500r/min
Compressing Ratio: 7:1
Transmission: Fully auto clutch & 4speeds semi auto
Starting system: Electric start and kick-back start
Cooling system: Air cooling Oil
Tank: 3.4L
Carton: 1150 x 760 x 700 mm
Gross Weight: 71Kgs 20' container 48 units 40"ft container 102 units 40'HQ :136 Units
