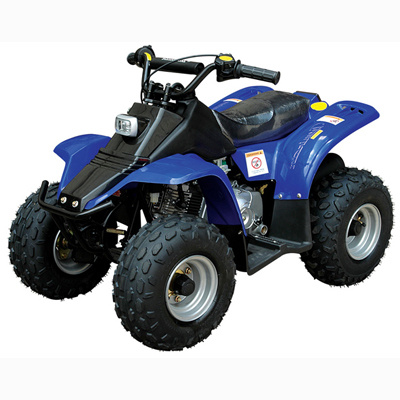

50cc ATV for Kids(SA50-A)

Specifications

Product Description

Specifications:
1) Max. speed: ≥30km/h
2) Climbing ability: ≥15 DEGREE
3) Max load: 80kg
4) Distance between axles: 690mm
5) Distance between front wheels: 420mm
6) Distance between rear wheels: 510mm
7) Ground clearance: 110mm
8) Specifications of front wheel: 145/70-6
9) Engine: 50cc, single-cylinder, 4 stroke
10) Displacement: 49mL
11) Rated power and rotation speed: 2.3kW/8,500rpm (approx.)
12) Max. torque and rotation speed: 2.7N.m/6,500rpm
13) Compression ratio: 7:1
14) Transmission: fully auto clutch and 4 speed semi-auto
15) Starting system: electric start
16) Cooling system: air cooling
17) Oil tank: 3.4L
18) Brake: rear disc brake

Outer packing:
Carton dimensions: 1,130 x 670 x 665mm
N.W.: 63kg
G.W.: 71kg

Conveyance:
Qty/20' FCL: 51pcs
Qty/40' HQ: 136pcs
