Specifications
Prod Model: |
FPA500E-7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fuel Tank Capacity: |
>8L |
Maximum Loading Capacity: |
≥120kg |
Engine: |
4 Stroke |
Displacement: |
>250CC |
Certification: |
EEC |
Max Speed: |
>50km/h |

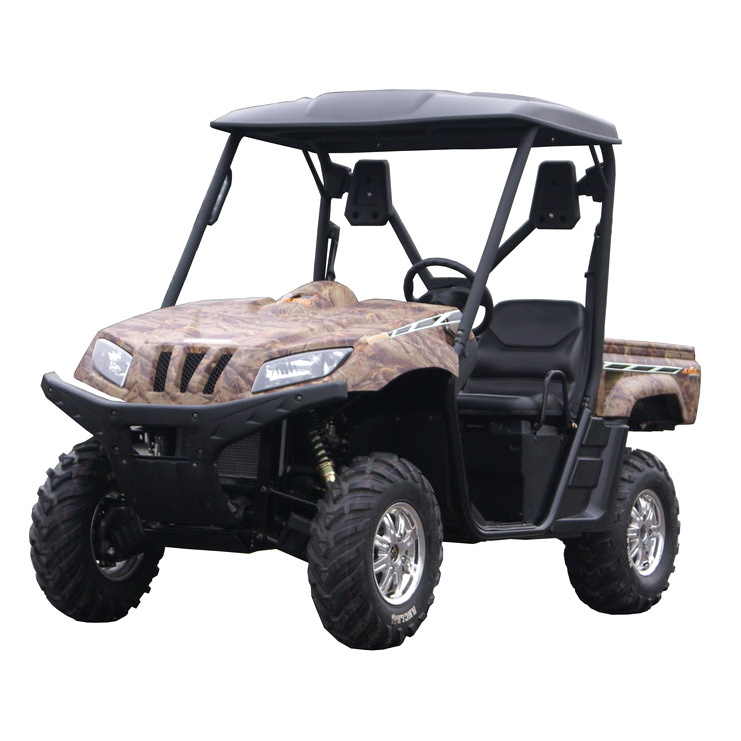

Product Description
ENGINE: Displacement: 493ml/24HP
Cooling: Water
Engine Type: Cfmotor 500cc
Fuel Capacity: 22.0L
Bore&stroke: 87.5*82mm
DRIVE: Transmission: C. V. T Automatic clutch(/R/N/L/H)
Ignition type: C. D. I
SUSPENSION: Front: 1225mm
Rear: 1215mm
SPEED: Max net power ourput: 75-84km/h
BRAKE: Front/Rear: Dual disc brake,
Rear: Dual disc brake.
TIRE: Front: 25× 8-12; Rear: 25× 10-12
DIMENSION:
Product dimension: 3370× 1280× 1880mm
Wheelbase: 2452mm
Ground Clearance: 220mm
Net Weight: 697 KG
Maximum Load: 300 KG
