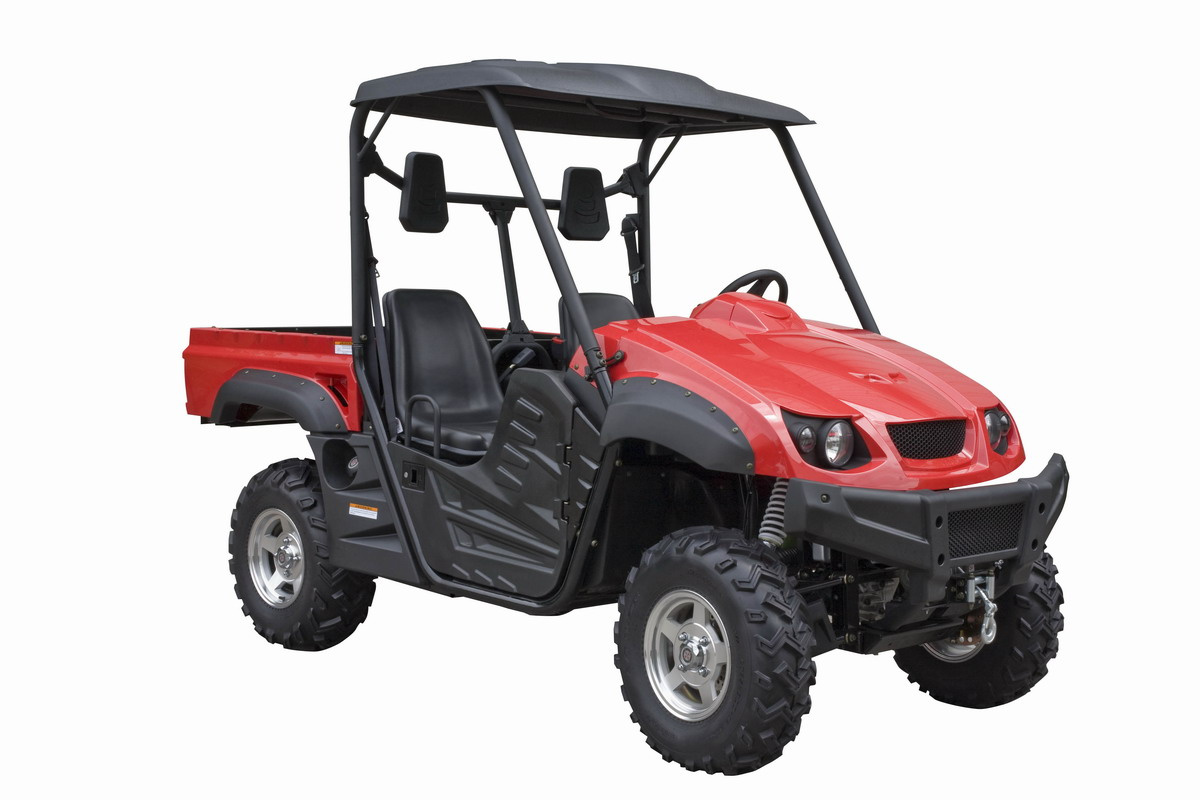

Home Farspeed Vehicle Industry Co., Ltd. 10000w EEC Electric UTV (FPA10000E-B)
Specifications
| Prod Model: | FPA10000E-B |
|---|---|
| Certification: | EEC |
| Transmission System: | Shaft Drive |
Product Description
EEC Electric utvMotor power: 10000W
| Parameter Name | Parameter Values | Unit |
| Applicable Models | ||
| Length | 3010 | mm |
| Width | 1460 | mm |
| Height | 1790 | mm |
| Wheelbase | 1890 | mm |
| Ground Clearance | 230 | mm |
| Front Wheel Treat | 1124 | mm |
| Rear Wheel Treat | 1190 | mm |
| Unloaded Weight(Fuel , Oil,Tools,Cooling Liquid Included) | 865 | kg |
| Loaded Weight (Unload Weight,Cargo,Driver,Passenger Included) | 1065 | kg |
| Carrier Loading Capacity (No Passenger) | 125 | kg |
| Carrier Loading Capacity (Passenger Included) | 50 | kg |
| Trailer | Without | |
| Battery Type | Lead-Acid Battery | |
| Battery Specification | 120Ah/96V | |
| Maximum Climbing Angle | 6 | ° |
| Maximum Speed | 63 | km/h |
| once charge drive distance (at 63km/h normal speed) | 32 | km |
| once charge drive distance (at ≤30km/h even speed) | 75 | km |
| Motor Rated Power | 10 | KW |
| Motor Maximum Power | 16 | KW |
| Motor Rated Torque | 76 | N.m |
| Motor Maximum Torque | 150 | N.m |
