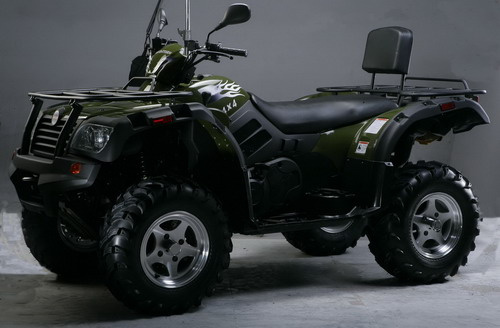

500cc UTV/ATV (HX500L-quad)

Specifications

Prod Model:	HX500L-atv

Product Description

ATV, 500cc 4WD CTV ATV,
ATV (HX500S and HX500L)

Our ATV's Feature: Large cylinder bore and four valve systems meets ATV requirement of strong power, low speed and high torque. Front & Rear shaft transmission for 4-WD with differential lock. Closed liquid cooling system meets the noise and emission standard, and cooling requirement of long time operation at low speed with open throttle CVT system for convenience and comfort. Automatic pressure relief system ensures recoil starting, electrical starting and starting at low temperature. Gear Shift Unit: L/H/N/R/P gears for various situations. Powerful generator with standard output jack. Balancer system for better riding comfort Forced lubrication system with oil filter for better reliability and easy maintenance Cigarette starter, net pocket and rear storage box bring the convenience to our daily life.

ATV
Model: HX500L
Overall Length: 2, 385mm (94in)
Overall Width: 1, 170mm (46.1in)
Overall Height: 1, 230mm (48.5in)
Seat Height: 900mm (35.5in)
Wheelbase: 1, 490mm (58.7in)
Minimum Ground Clearance: 275(11.1in)
Minimum Turning Radius: 4, 750mm (187.2in)

Max. Speed: 80km/h (49.7mpn)
Transmission: CVT, P/R/N/H/L
Suspension: F/R Double wishbone
Brake Type: F: Dual disc brake R: Single disc brake
Tire Size: F/R F: AT25A-8-12(185/88-12) R: AT25A-10-12(270/60-12)
Fuel capacity: 19L (5.02gal)
Front-rack capacity: 35kg (77.2 lb)
Rear-rack capacity: 40kg 154.3lb)
Hitch Towing Capacity: 1133.8kg (2500lbf)
Net weight (with fuel and battery): 365kg (804.8 lb)

ATV
Engine:
Engine type: Liquid-cooled 4-stroke, SOHC
Cylinder Arrangement: Forward-inclined single cylinder
Carburetor: MIKUNI BSR36-89
Displacement: 0.493L
Bore A-stroke: 87.5A-82mm (3.44A-3.23in)
Compression Ratio: 10.2: 1
Rated Power: 24Kw/7000rpm (32HP/700rpm)
Max. Torque: 36N. M/5500rpm
Oil Capacity: 2.2L (0.58Gal)
Starting System: Electric and recoil starter
Lubrication System: Wet sump
Carton Size: 2330*1180*1150 mm
Qty in 40GP: 20 units
