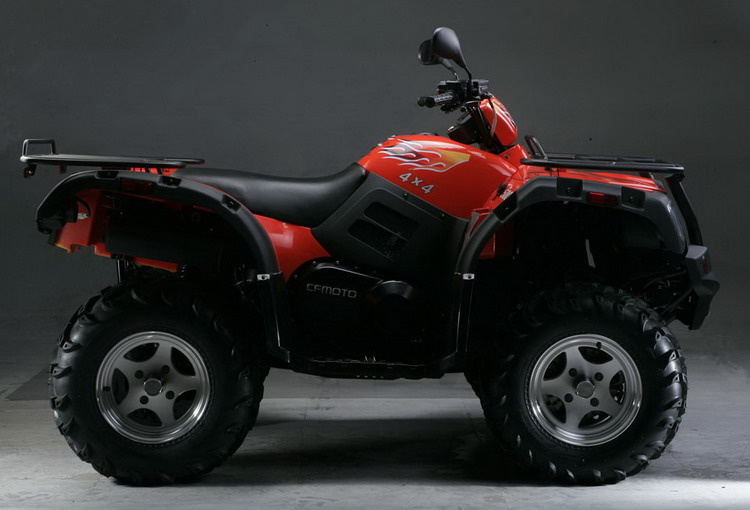

Home Hangzhou Hexin Auto Distribution Co., Ltd. 500cc 4WD Quad (HX500-quad)
| Prod Model: | 500cc HX500 |
|---|
Product Description
ATVModel: HX500
Overall Length: 2, 120mm (83.5in)
Overall Width: 1, 170mm (46.1in)
Overall Height: 1, 230mm (48.4in)
Seat Height: 920mm (36.2in)
Wheelbase: 1, 290mm (50.8in)
Minimum Ground Clearance: 275(11.1in)
Minimum Turning Radius: 4, 000mm (157.6in)
Max. Speed: 80km/h (49.7mpn)
Transmission: CVT, P/R/N/H/L
Suspension: F/R Double wishbone
Brake Type: F: Dual disc brake R: Single disc brake
Tire Size: F/R F: AT25A-8-12 38J R: AT25A-10-12 45J
Fuel capacity: 19L (5.0gal)
Front-rack capacity: 35kg (77.2lb)
Rear-rack capacity: 70kg (154.3lb)
Hitch Towing Capacity: 350kg (772lbf)
Net weight: ( with fuel and battery) 337kg (743lb)
ATV-Engine:
Engine type: Liquid-cooled 4-stroke, SOHC
Cylinder Arrangement: Forward-inclined single cylinder
Carburetor: MIKUNI BSR36-89
Displacement: 0.493L
Bore A-stroke: 87.5A-82mm (3.44A-3.23in)
Compression Ratio: 10.2: 1
Rated Power: 24Kw/7000rpm (32HP/700rpm)
Max. Torque: 36N. M/5500rpm
Oil Capacity: 2.2L (0.58Gal)
Starting System: Electric and recoil starter
Lubrication System: Wet sump
Qty in 40GP: 20 units
Established in 2002, Hangzhou Hexin Auto Distribution Co., Ltd, is a leading company specialized in production and distribution of auto & motorcycle spare parts and accessories. More than 20 years' experience of our boss in line of business, our company established long-term cooperation with many domestic manufacturers as our OEM factory.
To open the international market, we independently developed and designed two model of strong-powered and modern-styled ATV: Roar and Sandstorm, both of them are equipped with CF liquid cooled motor & CF transmission system which are the best liquid motor and transmission system in China, 4-wheel independent suspension, together with automatic CVT, gear shift with H/L/N/R/P and so on.
Our new-developed ATV have excellent quality such as strong power, good command &easy operation, low-consumed, comfort and stability and so on.
To open the international market, we independently developed and designed two model of strong-powered and modern-styled ATV: Roar and Sandstorm, both of them are equipped with CF liquid cooled motor & CF transmission system which are the best liquid motor and transmission system in China, 4-wheel independent suspension, together with automatic CVT, gear shift with H/L/N/R/P and so on.
Our new-developed ATV have excellent quality such as strong power, good command &easy operation, low-consumed, comfort and stability and so on.
