Specifications
Product Description

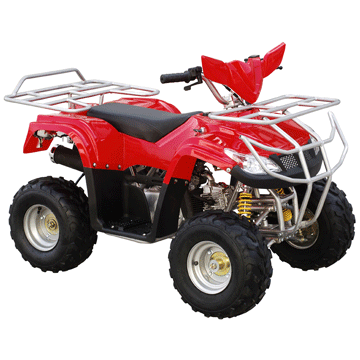

Model Number: HN-ATV02
Engine type: Single cylinder, 4 Stroke, Air-cooled With Remote Kill Switch!
Engine displacement: 50CC 70CC 90CC 110CC ALL AVAILABLE
Drive System: Automatic
Transmission: Chain
Battery: 12V, 5AH
Front Suspension: Double Spring Suspension
Rear Suspension: Single Spring Suspension
Start Method: Electric Start
Fuel Capacity: 2.0 L
Brake: Rear Disc Brake (Hand Operated)
Front Tire: 16*8-7
Rear Tire: 16*8-7
Vehicle Dimension: 1330*760*955 MM
Distance Between Axles: 860 MM
Distance Between Front Wheels: 670 MM
Distance Between Rear Wheels: 595 MM
Seat Height: 660 MM
Max. Speed: 40 KM/H
Weight Capacity: 80 KGS
N.W.: 79 KGS Packing:
Carton dimension: 1150*690*590mm
N. W.: 81KGS
G. W.: 97KGS
Conveyance:
Qty/20'GP: 48PCS Qty/40HQ: 135PCS
