5.5HP Small Diesel Engin with Electric Start (NCG-D178F)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | NCG-D178F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacement: | >250CC |
| Certification: | CE |
| Fuel Tank Capacity: | <5L |
Product Description

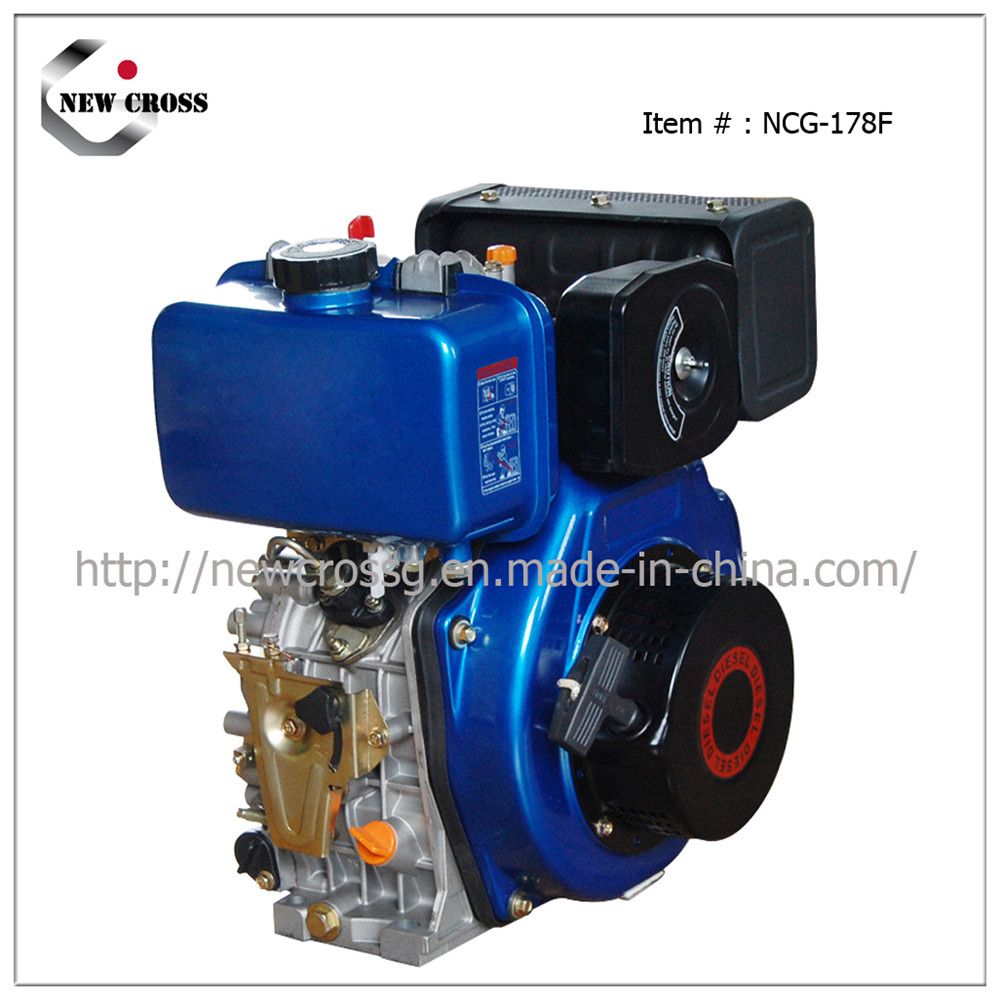

This is a 5.5HP NCG-D178F air cooled diesel engine, made from high quality materials.It is brand new in the box from the manufacturer with the following features:
1) EPA and CE Approved to the latest standards
2) Fuel type is diesel
3) Displacement is 305 CC
4) Power output is 5.5 HP at 3600 RPM and 5.0 HP at 3000 RPM
5) Injection system is direct injection
6) Bore and Stroke is 78 X 62 mm
7) Starter type is Electric start (also has recoil start backup)
8) Built in charging system and regulator
9) Fuel tank capacity is 0.92 gal. (3.5 liter)
10) Multi-choice PTO shafts
11) We have a very complete supply of spare parts for these engines (anything you need, we can supply)
12) Includes operation manual, tool kit, and technical support.
| Model | NCG-D178F |
| Rated output(HP/rpm) | 5HP/3000rpm, 5.5HP/3600rpm |
| Rated output(KW/rpm) | 3.7KW/3000rpm, 4.4KW/3600rpm |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 78X62 |
| Piston displacement (L) | 0.296 |
| Compression ratio | 20 |
| Rated power/Rated speed(kW/rpm) | 3.68/3000 4/3600 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer: 0#, Winter: -10# |
| Fuel tank capacity (L) | 3.5 |
| Fuel consumption rate(g/kW. h) | 276.1/3000 285.6/3600 |
| Oil consumption rate(g/kW. h) | 4.08 |
| Oil grade | CD grade or SAE10W-30, 15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.1 |
| Starting motor (V, kW) | 12V 0.8kW |
| Charging generator(V, A) | 12V 3A |
| Battery capacity(V, AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 480*435*520 |
| Net weight(kg) | 33 |
