Specifications
Prod Model: |
NCG-HGP80 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

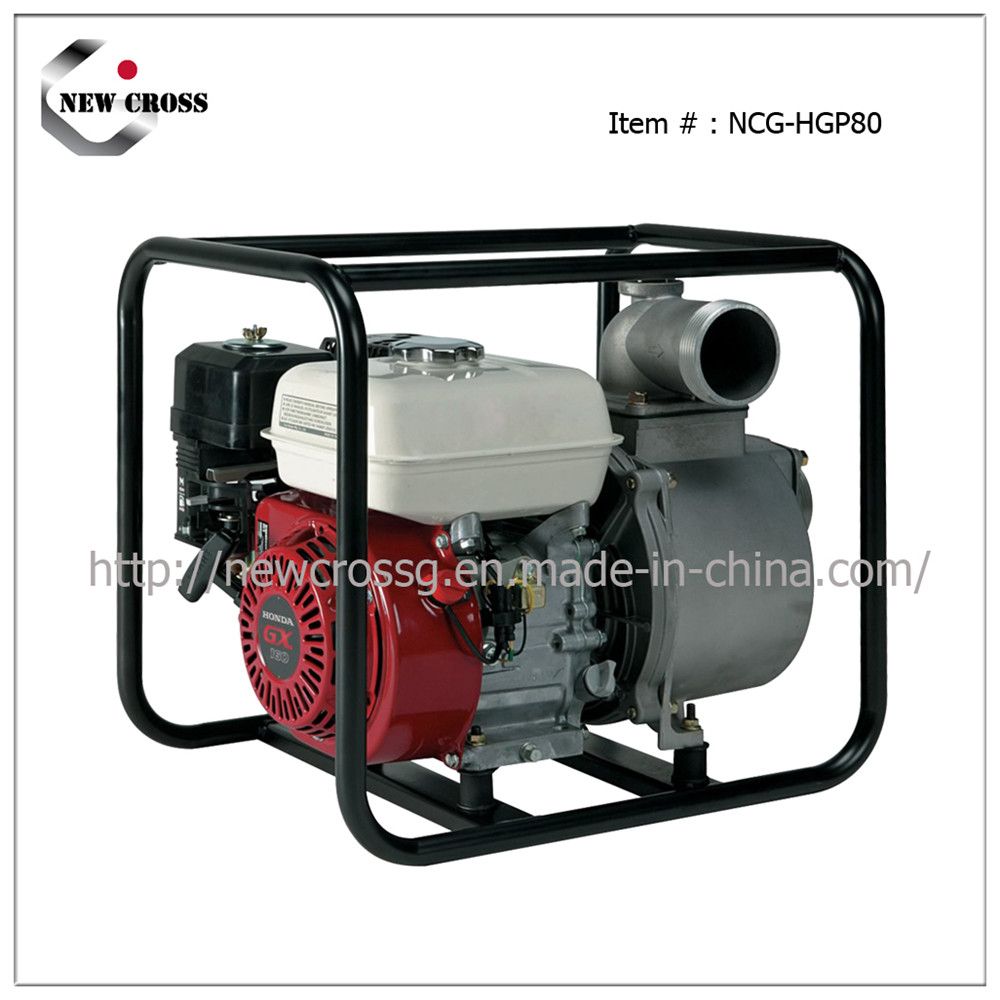

5.5HP 3" Gasoline Water Pump
Item No.: NCG-HGP80
1, Large fuel tank for hours of continuous operation
2, Aluminum alloy high pressure casting compact in structure and light weight
3, Qualified mechanical seal device
4, Self-suction structure
5, Wide option range in bore size from 2 to 4 inch
6, Recoil Starting and Electric Starting are both available for choice.
Item No. |
NCG-BGP50 |
NCG-GP80 |
NCG-HGP50 |
NCG-HGP80 |
Engine Brand |
Briggs & Stratton |
Honda |
Suction |
50mm/2in |
80mm/3in |
50mm/2in |
80mm/3in |
Rated Capacity |
27m³/h,119GPM |
55m³/h,242GPM |
20m³/h,88GPM |
35m³/h,154GPM |
Discharge port dia |
50mm/2in |
80mm/3in |
50mm/2in |
80mm/3in |
Self-Priming Time |
70s/4m,70s/13ft |
120s/4m,120s/13.1ft |
110s/5m,110s/16ft |
150s/5m,150s/16ft |
Max.Suction Head |
8m/26ft. |
8m/26ft |
8m/26ft |
8m/26ft |
Max.Head |
19m/62ft. |
18m/58.9ft |
19m/62ft |
18m/59ft |
Dim(LxWxH) |
517*415*457mm |
522*445*457mm |
458*385*409mm |
512*385*437mm |
Net Weight/Gross Weight |
24kg/27kg,52.8ib/59.4ib |
27kg/30kg,59.4ib/66ib |
25kg/28kg,55ib/61.6ib |
27kg/30kg,59ib/66ib |
Displacement Capacity |
163cc |
163cc |
163cc |
163cc |
Max.Ouput |
5.5hp/3600RPM |
5.5hp/3600rpm |
5.5hp/3600rpm |
5.5hp/3600rpm |
Fuel Tank Capacity |
3.6L/0.95gallon |
3.6L/0.95gallon |
n/a |
n/a |
Lubrication OH |
SAE 10W/30 |
SAE 10W/30 |
n/a |
n/a |
Lubrication OH Volume |
0.6L |
0.8L |
n/a |
n/a |
Spark Plug |
RC12YC |
RC12YC |
n/a |
n/a |
