Specifications
Prod Model: |
QW-ATV-01C |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Manual |
Certification: |
ISO9001 |
Engine Type: |
2 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
50CC |
Maximum Speed: |
<50 km/h |
Brake Type: |
Disc Brake |
Product Description

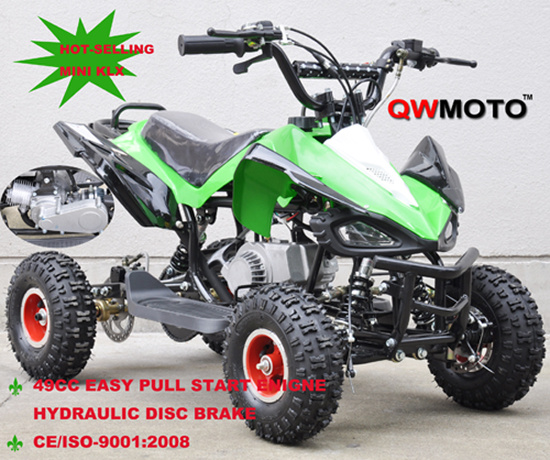

NEW 49CC Mini ATV /49CC Quad Bike/49CC Buggy for KIDS CE
Model No: QW-MATV- 01C
Engine: 1 cyclinder, 2 stroke, air cooled, 49cc
Dispacement: 47ml
Compression ratio: 7.5: 1
Max. Power(kw/r/mim): 2/ 7500
Max. Torque(N. M/r/min): 2.3/3600
Transmission: Chain drive
Starting system: Manual pull start only
Ignition: C. D. I
Wheel: High strength steel wheel rim, color-painted
Tire: Front & rear 3.00-4
Petrol tank volume: 1.8L
Max. Speed: ~36kmph
Max load capacity: 65kgs
Brake system: Front 2 disc brakes and rear 1 disc brake
Suspension: Front double spring shock, rear mono shock
Dimension: 1000mm(L)*600mm(W)*600(H)
Wheelbase: 700mm
Seat height: 435mm
Dry weight: 30kg Gross weight: 34 kg
Carton Size: 990mm(L)*575mm(W)*510mm(H)
Conveyance Qty:
88pcs/20FT, 240pcs/40'HQ
Colors available: Red/black/green/blue/yellow etc...
