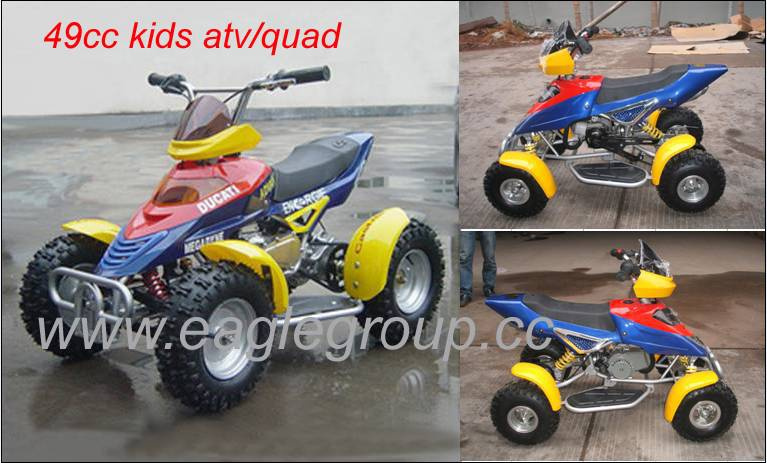

Home Eagle Industry and Trade Co., Ltd. 49cc Kids ATV, Quad (YG-ATV49-6)
| Prod Model: | YG-ATV49-6 |
|---|
Product Description
SpecificationsEngine Type: Single cylinder, 2 stroke, air cooled
Final Drive: Chain drive
Bore x Stroke(mm): 39 x 41.4
Piston Displacement(cc): 49
Tank capacity: 1L
Maximum Power(kw/r/min): 2.5kw/8500rpm
Max Torque(N. M/r/min): 3.0N. M/6500r/min
Starter Sytem: Hand pull start
Trasmission: Automatic
Overall LxWxH(mm): 1040x640x710mm
Packing Dimesion LxW xH (mm): 1030x580x490mm
Wheel Base(mm): 680
Seat Height(mm): 450
Ground Clearance(mm): 100
Brake(Front/Rear): Rear/disc
Tire, Front: 13X4.10-6NHS
Tire, Rear: 13X5.0-6NHS
Ignition Type: CDI
Fuel Tank Capacity (L): 2.5
Engine Oil Capacity(L): 0.95
Distance(front/rear wheel): 505mm
Distance(axle): 695mm
Front suspension: Leading arm
Rear suspension: Swing arm
Max Speed(km/h): 50km/h
Max gradability(degree): 16
Max. Load Capacity(kg): 80kg
Oil type: 1: 25 oil engine mixtures
NW(kg): 45
GW(kg): 50
Quantity of Loading: 120pcs/20'ft; 240pcs/ 40'ft; 270pcs/ 40'hq
Eagle group was founded in 2001, still now we have 22 joint or cooperative enterprises. The head company is Eagle Industry And Trade Company Limited
Eagle group carry "industry diversification" into execution. The basic products are ATV, DIRT BIKE, SCOOTER, POCKET BIKE, GO KART, the new products are RACING PRODUCT, ALUMINIUM RADIATOR AND LIGHT. The integrated economy of Group is in the front rank of the industry in China and dedicate to technical innovations, establish the most complete database of the national industry. Most of the products get the international safe or environmental certification(CE, EPA, EEC, DOT, ECE). The abroad sales is booming and being exported to more than 50 countries or districts, has own distributors in more than 20 countries. Insist on that the quality is the root of the development for an enterprise, not only has strict manufacture and quality control system, but also offer better after-sales services for the products.
With the tenet of honesty, the direction of speciality. We offer good quality products at the competitive price and the effective service to satisfy our customers.
Eagle group carry "industry diversification" into execution. The basic products are ATV, DIRT BIKE, SCOOTER, POCKET BIKE, GO KART, the new products are RACING PRODUCT, ALUMINIUM RADIATOR AND LIGHT. The integrated economy of Group is in the front rank of the industry in China and dedicate to technical innovations, establish the most complete database of the national industry. Most of the products get the international safe or environmental certification(CE, EPA, EEC, DOT, ECE). The abroad sales is booming and being exported to more than 50 countries or districts, has own distributors in more than 20 countries. Insist on that the quality is the root of the development for an enterprise, not only has strict manufacture and quality control system, but also offer better after-sales services for the products.
With the tenet of honesty, the direction of speciality. We offer good quality products at the competitive price and the effective service to satisfy our customers.
