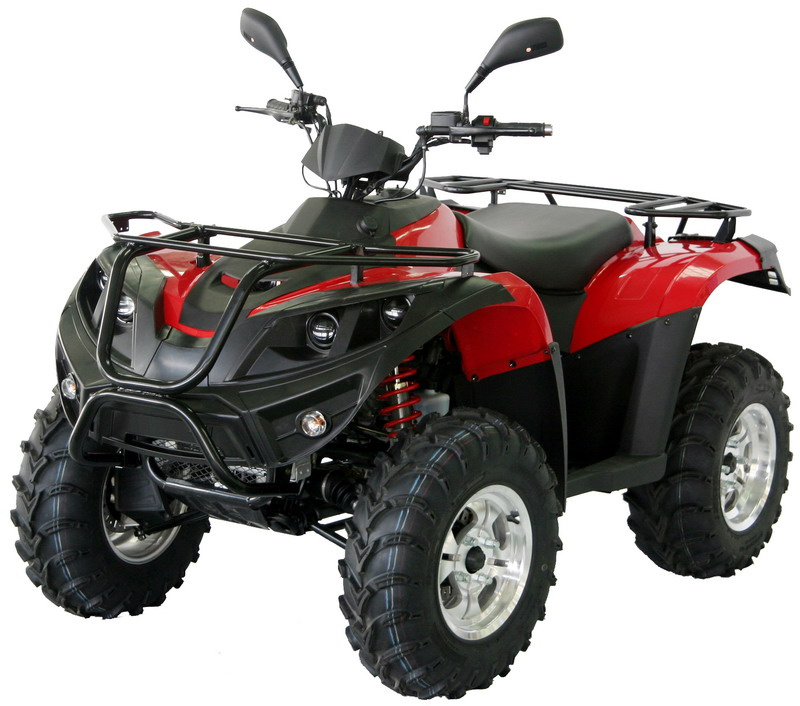

400cc ATV 4X4 Quad Bike
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 8/Piece |
| Pay Type: | T/T |
| Prod Model: | KINGMAX EX400 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling System.: | Water Cooled |
| Starting System.: | Electric Start |
| Transmission.: | CVT Automatic |
| Final Drive.: | Shaft Drive 4WD |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EPA |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Displacement: | 400cc |
| Maximum Speed: | 90 Km/H |
Product Description
Manufacturer of ATV, quad, quad bike, ATV quad, 4 wheeler ATV, ATV 4X4, EEC ATV, utility ATV, all terrain vehicle, quad ATV, ATV 250cc, ATV 300cc, ATV 400cc, , ATV 500cc, ATV 600cc, 250cc ATV, 300cc ATV, 400cc ATV, 500cc ATV, 600cc ATV, ATV EEC, ATV EPA, ATV EEC 4X4, ATV EPA 4X4, ATV EEC 300cc, ATV EPA 300cc, ATV 300cc 4X4, EPA ATV, EEC ATV 4X4, EEC ATV 300cc, 4X4 ATV EEC, 4X4 ATV EPA, 4X4 ATV 300cc, 300cc ATV EEC, 300cc ATV EPA, 300cc ATV 4X4, EPA ATV 4X4, EPA ATV 300cc, all terrain vehicle 4X4, all terrain vehicle 300cc, ATV utility, utility ATV 300cc, ATV utility 300cc, farm utility ATV, farm ATV utility, racing ATV, quad 4X4, quad 300cc, 4X4 quad, ATV automatic, ATV automatic 4X4, ATV automatic 300cc, automatic ATV, automatic ATV 4X4, automatic ATV 300cc, quad automatic, automatic quad, ATV CVT, ATV CVT 4X4, ATV CVT 300cc, CVT ATV, CVT ATV 4X4, CVT ATV 300cc, 300cc quad, quad EEC, quad EPA, EEC quad, EPA quad, quad CVT, CVT quad.400cc ATV 4X4 Quad Bike
1. MAIN FEATURES:
- Water-cooled 400CC Engine
- CVT Automatic with High-Low
- Shaft Drive, 2WD & 4WD Switch

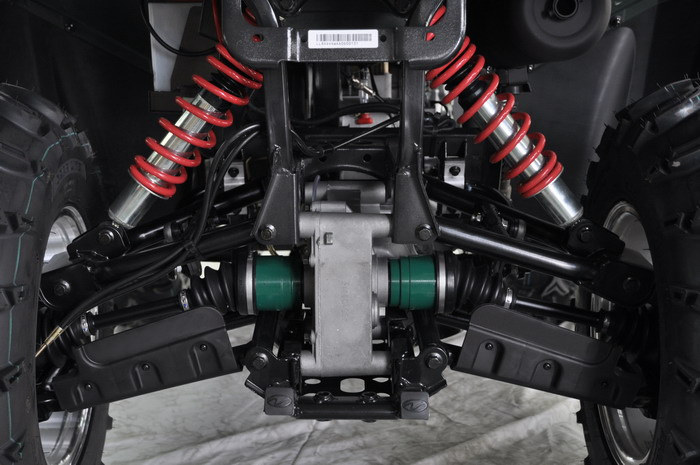

- Independent Rear Suspension (IRS)
2. SPECIFICATION:
| ENGINE | |
| Engine Type | 1 Cylinder, 4 Stroke, SOHC |
| Engine Displacement | 351.9cc |
| Bore x Stroke | 80 X 70mm |
| Fuel System | Carburetor |
| Cooling System | Liquid-Cooled |
| Ignition | T. C. I |
| Max. Power Output | 19kw/7000r/min |
| Max. Torque | 27N. M/5500r/min |
| Fuel Capacity | 15L |
| Lubrication System | Splash & Press |
| Starting System | Electric Start |
| Transmission Mode | Automatic CVT with H/L/N/R |
| Final Drive | Shaft Drive 4WD |
| Shift Switch(2WD/4WD) | YES |
| Battery | 12V 14Ah |
| Wheels & Brakes | |
| Tyres Front | 25X8-12 |
| Tyres Rear | 25X10-12 |
| Parking | Mechanics Parking Brake |
| Suspension Front | MacPherson Independent Suspension |
| Suspension Rear | Twin-A Arm Independent Suspension |
| Brakes Front / Rear | Hydraulic Disk Brake |
| Dimensions & Weight | |
| Product Dimension(LxWxH) | 2, 110x1, 140x1, 200mm |
| Carton Dimension(LxWxH) | 2, 280x1, 180x860mm |
| Seat Height | 915 mm |
| Wheelbase | 1, 280mm |
| Ground Clearance | 230mm |
| Dry Weight | 330kg |
| Gross Weight | 395kg |
| Container Loading | 8 Units/20' GP 30 Units/40' HQ |
Lannmarker, located in Shanghai and has its own factory in Jiangsu province, produces and exports the most high quality off-road vehicles, water sports equipments and the accessories, our main proudcts includes:
- All-terrain Vehicles (ATVs)
- Side by Side Vehicles (UTVs)
- ATV/UTV Parts & Accessories
- Personal Transporter (FREEYOYO)
- Emergency Rescue Vehicles (MEV09)
- All-terrain Fire Fighting Vehicles (FFV09)
- Personal Watercraft Jet Ski (SEAMAX)
- Multipurpose Aluminum Boats (MB42)
Lannmarker is the leader in technology and innovation, in 2005 we introduced the first 4-Seater UTV to the industry and we have the largest displacement engine available in an UTV today with an 1100CC In-Line 4 Cylinder DOHC Fuel Injected engine and an 800CC In-Line 3 Cylinder DOHC Fuel Injected Engine.
QUALITY
Lannmarker provides itself on quality and strive to continuously improve our product through customer feedback. Our quality staff performs the following functions related to ensuring the quality of our vehicles and products that include supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections (PDI). We rigorously test each and every vehicle after assembly on our state of the art testing simulator and actual road test. Each vehicle is final inspected using our 121 point checklist before packaging and is included with each vehicle. Most importantly is that we listen to what our customers have to say and are always looking for ways to improve the quality of our products through continuous improvement.
CUSTOMER SERVICE
Lannmarker has made a commitment to be the leader in customer service before and after the sale. We carry thousands of spare parts for immediate delivery to anywhere in the world. While our vehicles come standard with more features than anyone else we also offer more optional parts for our vehicles than anyone else. We will strive to achieve the necessary results and solutions to any customer concern and, to provide the most accurate and up to date information possible and to better inform our customers of our products and the services we provide. Our goal is to provide the customer with level of service they deserve and to improve the communication. So please feel free to contact us anytime with questions or concerns you may have regarding our vehicles, products or the customer service you have received.
Lannmarker is looking forward to closer collaboration with friends from all the world.
- All-terrain Vehicles (ATVs)
- Side by Side Vehicles (UTVs)
- ATV/UTV Parts & Accessories
- Personal Transporter (FREEYOYO)
- Emergency Rescue Vehicles (MEV09)
- All-terrain Fire Fighting Vehicles (FFV09)
- Personal Watercraft Jet Ski (SEAMAX)
- Multipurpose Aluminum Boats (MB42)
Lannmarker is the leader in technology and innovation, in 2005 we introduced the first 4-Seater UTV to the industry and we have the largest displacement engine available in an UTV today with an 1100CC In-Line 4 Cylinder DOHC Fuel Injected engine and an 800CC In-Line 3 Cylinder DOHC Fuel Injected Engine.
QUALITY
Lannmarker provides itself on quality and strive to continuously improve our product through customer feedback. Our quality staff performs the following functions related to ensuring the quality of our vehicles and products that include supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections (PDI). We rigorously test each and every vehicle after assembly on our state of the art testing simulator and actual road test. Each vehicle is final inspected using our 121 point checklist before packaging and is included with each vehicle. Most importantly is that we listen to what our customers have to say and are always looking for ways to improve the quality of our products through continuous improvement.
CUSTOMER SERVICE
Lannmarker has made a commitment to be the leader in customer service before and after the sale. We carry thousands of spare parts for immediate delivery to anywhere in the world. While our vehicles come standard with more features than anyone else we also offer more optional parts for our vehicles than anyone else. We will strive to achieve the necessary results and solutions to any customer concern and, to provide the most accurate and up to date information possible and to better inform our customers of our products and the services we provide. Our goal is to provide the customer with level of service they deserve and to improve the communication. So please feel free to contact us anytime with questions or concerns you may have regarding our vehicles, products or the customer service you have received.
Lannmarker is looking forward to closer collaboration with friends from all the world.
