Specifications
Prod Model: |
LANDMAX 800UR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fuel System: |
Siemens Efi |
Transmission Mode: |
Manual 5-Speed |
Others: |
F/R Locking Differential |
Final Drive: |
2WD & 4WD Switch |
F/R Brakes: |
Hydraulic Disc |
Cooling System: |
Water Cooled |
Ignition: |
Siemens ECU |
Brake Type: |
Disc Brake |
Maximum Speed: |
>75 km/h |
Fuel: |
Gas / Diesel |
Certification: |
EPA |
Transmission System: |
Shaft Drive |
Engine Type: |
4 Stroke |
Structure: |
Two Side Doors |
Transmission Type: |
Manual |
Displacement: |
800CC |
Product Description
Manufacturer and exporter of UTV, utility vehicle, ATV, quad bike, go kart, dune buggy, UTV 4x4, 4x4 UTV, 800CC UTV, UTV jeep, China UTV, UTV 800CC, EEC UTV, UTV cart, UTV EPA, UTV side by side, electric 4x4 UTV, EPA UTV, 4x4 utility vehicle, 4x4 UTV 800CC, 800CC UTV 4x4, all terrain utility vehicles, jeep UTV, Chinese UTV, joyner UTV 4x4, 4 seat UTV, 4 seat utility vehicle, side by side UTV, 4 seater UTV, street legal utility vehicles, hunting utility vehicle, UTV EEC, gas UTV, hunting UTV, 800CC 4x4 UTV, 800CC EEC UTV, UTV 4x4 800CC, UTV 4 seater, utility ATV farm vehicle, utility vehicle 4x4, ATV utility vehicle, 4 wheel utility vehicle, sport utility vehicle, EPA utility vehicle, off road utility vehicle.

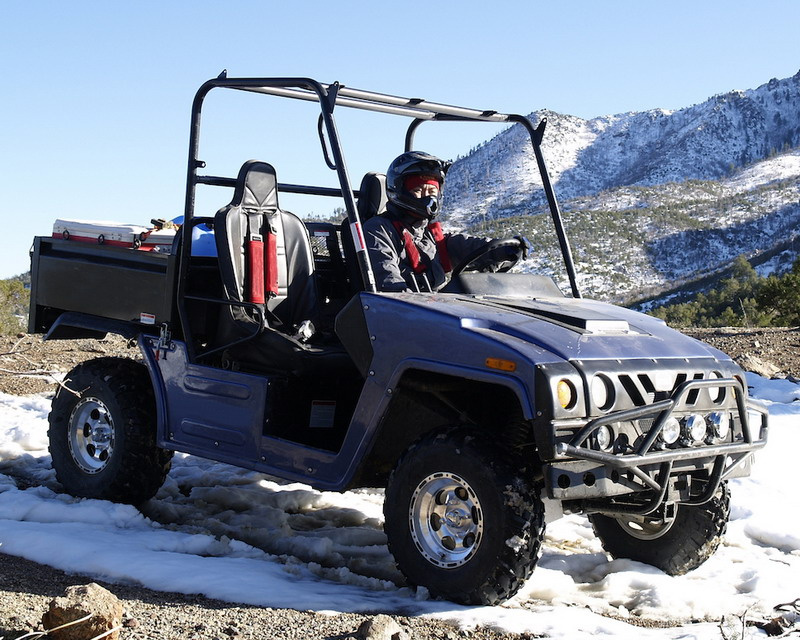

Lannmarker 800CC UTV 4X4 Utility Vehicle
- 800CC Water-cooled EFI Engine
- Manual 5-Speed - Hydraulic Clutch
- Shaft Drive 2WD & 4WD Switch
- Front and Rear Locking Differential
- Independent Rear Suspension (IRS).
SPECIFICATION |
ENGINE |
|
Engine Type |
In-Line Three Cylinder, 12- Valve DOHC |
Displacement |
812cc |
Bore x Stroke |
72 x 66.5mm |
Compression |
9.5 : 1 |
Fuel System |
Siemens Electronic Fuel Injection |
Cooling System |
Water Cooled |
Ignition |
Siemens ECU |
Max. Power Output |
38 kw/6000r/min |
Max. Torque |
70 N.M/3500-4000r/min |
Fuel Capacity |
42L (11.1Gal) |
Transmission Mode |
Manual 5-Speed - Hydraulic Clutch |
Final Drive |
2WD/4WD, Front and Rear Locking Differential |
Top Speed |
88 KM |
Wheels and Brakes |
|
Front/Rear Tyres |
27*8-12 / 27*10-12 |
Front Suspension |
Independent, Double Swing Arm |
Rear Suspension |
Individual Lengthwise Swinging Arm |
Front/Rear Brakes |
Hydraulic Four Wheel Disc |
Dimensions and Weight |
|
Product Dimension(LxWxH) |
3,230 X 1,550 X 1,900mm |
Carton Dimension(LxWxH) |
3,320 X 1,660 X 1,170mm |
Payload Capacity |
500 kg |
Wheelbase |
2,050 mm |
Ground Clearance |
290 mm |
Dry Weight |
760 kg |
Gross Weight |
1270 kg |
Container Loading |
6 units/40'HQ |
