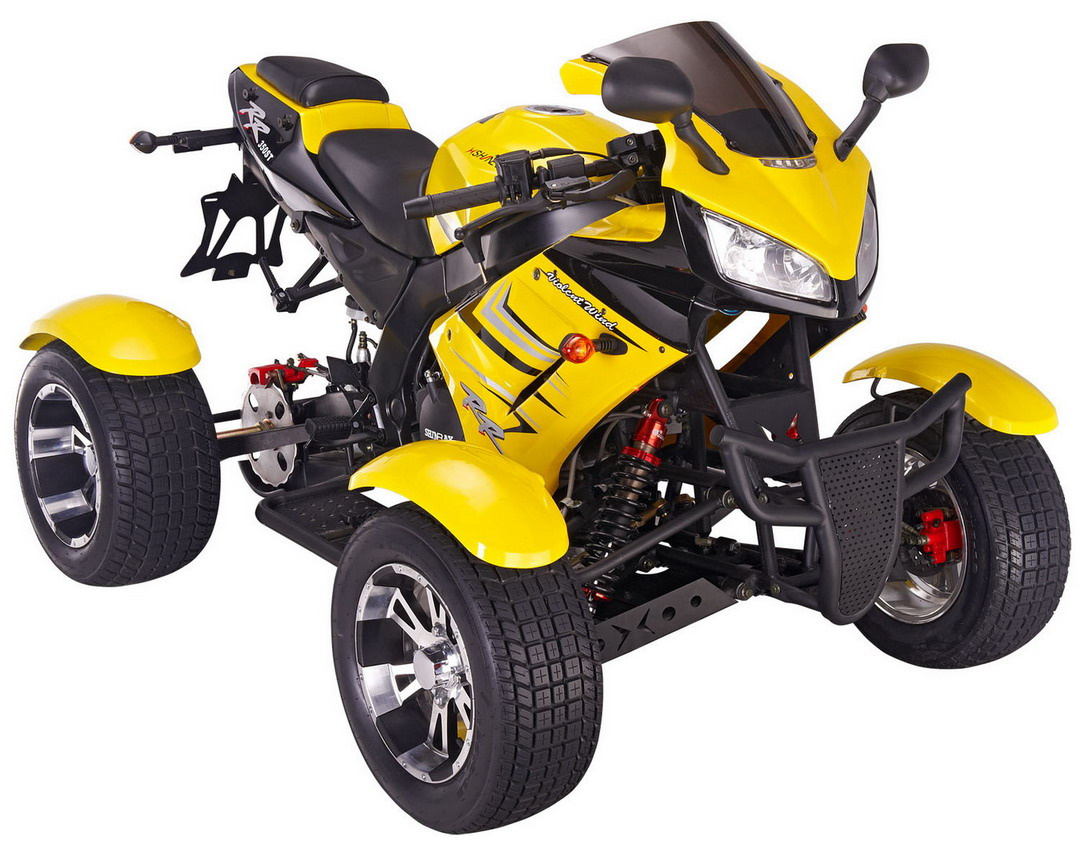

350cc Racing ATV (FPA350E-1)

Specifications

Prod Model:	FPA350E-1

Product Description

FPA350E-1
Engine
Engine Type: 183FMP,/single cyliner / Four-stroke /air-cooled
Displacement (ml): 348
Bore X Stroke (mm): 83×64.5
Compression Ratio: 9.0:1
Max. Power (kw/r/min): 17.4/7500
Max. Torque (N.m/r/min): 23.5/6000
Max. Speed (Km/h): 88
Lubrication: Pressed/splash
Clutch Type: wet multiplate manual clutch
Ignition: P.E.I
Starting System: Electric
Transmission System: Chain drive
CHASSIS
Front Suspension: Independent double wish-bone with dual surge tank
Rear Suspension: Swing arm with single surge tank
Front Brake: disck brake (four-wheels linkage brake)/hand
Rear Brake: disck brake (four-wheels linkage brake)
Stationary Brake: Mechanical lock
Front Tire: AT 20×8-12
Rear Tire: AT 20×10-12
Battery: 12V 14Ah
DIMENSIONS
L X W X H (mm): 1920×1290×1125
Seat Height (mm): 850
Wheelbase (mm): 1280
Turning Radius (mm): 1600
Min. Ground Clearance (mm): 240
Max. Permissible Weight (kg): 150
Rider Capacity: 2
Dry. Weight (kg): 252
Engine Oil (L): 2.5
Fuel Tank Capacity (L): 16L
