Home Farspeed Vehicle Industry Co., Ltd. 350CC EEC ATV (FPA350E-1)
| Prod Model: | FPA350E-1 |
|---|---|
| Certification: | EEC |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Semi-Automatic |
| Displacement: | 300CC |
Product Description

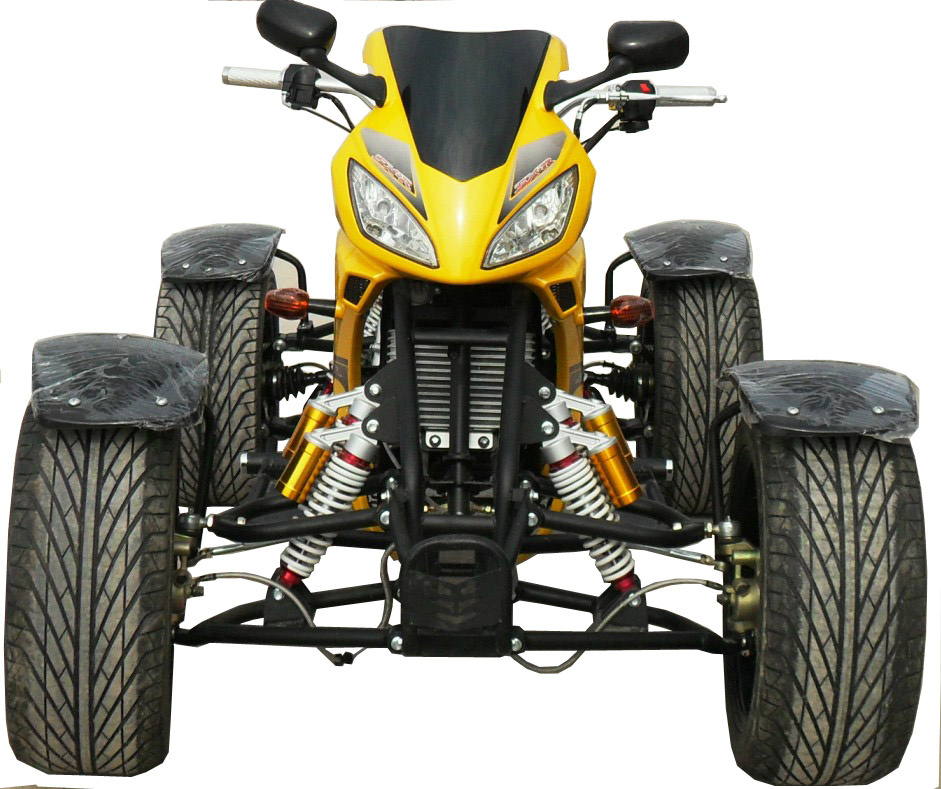

350cc EEC ATVEEC ATV
EEC QUAD
QUAD BIKE
CHINA ATV
| Engine Type: | 183FMP,/single cyliner / Four-stroke /air-cooled |
| Displacement (ml): | 348 |
| Bore X Stroke (mm): | 83×64.5 |
| Compression Ratio: | 9.0:1 |
| Max. Power (kw/r/min): | 17.4/7500 |
| Max. Torque (N.m/r/min): | 23.5/6000 |
| Max. Speed (Km/h): | 88 |
| Lubrication: | Pressed/splash |
| Clutch Type: | wet multiplate manual clutch |
| Ignition: | P.E.I |
| Starting System: | Electric |
| Transmission System: | Chain drive |
| Front Suspension: | Independent double wish-bone with dual surge tank |
| Rear Suspension: | Swing arm with single surge tank |
| Front Brake: | disck brake (four-wheels linkage brake)/hand |
| Rear Brake: | disck brake (four-wheels linkage brake) |
| Stationary Brake: | Mechanical lock |
| Front Tire: | AT 20×8-12 |
| Rear Tire: | AT 20×10-12 |
| Battery: | 12V 14Ah |
| L X W X H (mm): | 1920×1290×1125 |
| Seat Height (mm): | 850 |
| Wheelbase (mm): | 1280 |
| Turning Radius (mm): | 1600 |
| Min. Ground Clearance (mm): | 240 |
| Max. Permissible Weight (kg): | 150 |
| Rider Capacity: | 2 |
| Dry. Weight (kg): | 252 |
| Engine Oil (L): | 2.5 |
| Fuel Tank Capacity (L): | 16L |
| Packing Weight (kg): | 305Kg |
| Container Loading: | 12units/20’, 28units/40’, 39units/40’HQ |
| Colors Available: | Red, Yellow, Green. |
Farspeed Vehicle Industry Co., Ltd. is a professional manufacture of ATVs, dirt bikes, scooters and pocket bikes. We have specialized in the research and development of sports vehicle about 6 years. Our main market include the UK, France, Germany, Finland, Sweden and Australia.
Base on the good quality products and outstanding service, our customers have performed very competitive in their market. In order to satisfy the demand of customers farther more, we have built a reliable and long term relation with China vehicles supplier. So we become more competitive in cost control, parts supply, and product variety.
We not only have special engineers to offer reliable warranty and good after-sales services to customers but also follow the situation of marketing of our customers, provide the the latest products information that we master in many years experience at this industry. The aim of us is just like the name of our company, we can run a more Far way at a more fast Speed together with you hand in hand.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits.
Base on the good quality products and outstanding service, our customers have performed very competitive in their market. In order to satisfy the demand of customers farther more, we have built a reliable and long term relation with China vehicles supplier. So we become more competitive in cost control, parts supply, and product variety.
We not only have special engineers to offer reliable warranty and good after-sales services to customers but also follow the situation of marketing of our customers, provide the the latest products information that we master in many years experience at this industry. The aim of us is just like the name of our company, we can run a more Far way at a more fast Speed together with you hand in hand.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits.
