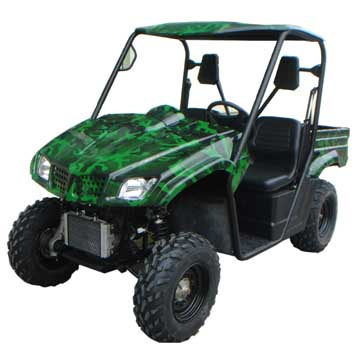

300cc EEC UTV(FG300E-4)

Specifications

Prod Model:	FG300E-4

Product Description

FG300E-4 UTV
ENGINE TYPE Water Cooled,CVT
Fg300e-4 Utv
Engine Type Water Cooled, Cvt
Max. Power(Kw/Rpm) 14kw/6000rpm
Max. Torque(Nm/Rpm) 23n. M/5000rpm
Max. Speed 60km/H
Cylinder No. Single Cylinder
Bore Stroke 72.5mm*66.8mm
Displacement 276cc
Compression Ratio 10.3: 1
Carburetor Cvk052
Lubricate Combined Force-Feed And Splash Lubrication
Air Flter Type Dry Air Filter Net
Spark Plug A7rtc
Starting Electric Start
Ignition C. D. I
Starting Procedure Start Electric Lock, Hold Brake, Press Start Switch
Gearshift Manual
Shift Switch: 2w/4w Shift Button (Yellow)
Teansmission: Shaft Transmission
Final Drive System : 4w/Shaft
Brake Front: Hydraulic Disc Brake
Brake Rear: Hydraulic Disc Brake
Parking Device: Mechanical Brake Lock On Rear Disc
Brake Distance: 7m/30km/H
Front Suspension: Mcpherson Front Suspension
Rear Suspension: Independent Rear Suspension
Shock Absorber(F): Double
Shock Absorber(R): Double
Battery: 12v/14ah
Engine Oil: 1.5l
Transmission Oil: 0.8l
Rear Oil: 0.3l
Fuel: 90# Unleaded Gasoline
Fuel Capacity: 20l
Turning Radius: 3900mm
Max. Load(Kgs/Lbs): 250kg
Front Tire: 25*8-12
Rear Tire : 25*10-12
Overall: 2950*1340*1900mm
Caton Size(L/M/H): 2600*1360*1100mm
Package40hq(Set): 16pcs
Wheel Base(Mm): 1910mm
Seat Height(Mm): 790
Ground Clearange(Mm): 340mm
Net Weight(Kgs/Lbs): 350kg
Color Code: "Red, Black, Orange, Blue, Green, White Maple Leaf Camo,
Red Maple Leaf Camo, Yellow Maple Leaf Camo, Green Black Camo"
