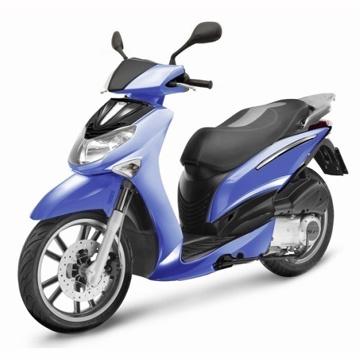

125CC/150CC/180CC Scooter(FM125E-34)

Specifications

Prod Model:	FM125E-34

Product Description

125CC FM125E-34
Engine type 152QMI, 124.6cc, four-stroke, air-cooled
Bore * Stroke 52.4 mm * 57.8 mm
Compression ratio 9.2 : 1
Max. Power 5.6 kw at 7500min
Max. Torque 7.8 Nm at 6500 min
Carburetion Honling, PD24K
Ignition CDI
Transmission V-belt, CVT-automatic
Brakes / Front 220 mm Disc hand control
Brakes / Rear 180 mm Disc hand control
Tire size / Front 100/80-16 KENDA and CHENGSHIN
Tire size / Rear 120/80-16 KENDA and CHENGSHIN
Wheel Material Aluminium alloy
Muffler Material Armor plate
Length 2020 mm
Width 700 mm
Height 1160 mm
Seat Height 790 mm
Wheelbase 1335 mm
Dry Weight 134 kg
Battery capacity 12V-7Ah YUASA and PRESIDENT
Fuel capacity 6 L
Color Red, Blue, Yellow, Black, Silver
