Specifications
Prod Model: |
GT300ST-R |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Manual |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
300CC |
Structure: |
Two Side Doors |
Brake Type: |
Disc Brake |
Maximum Speed: |
75km/h |
Product Description

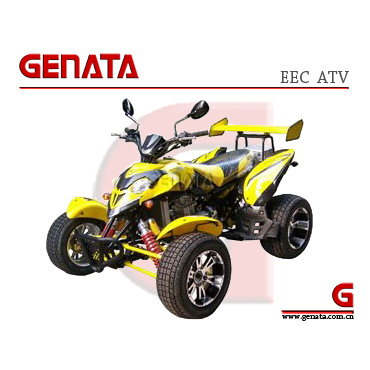

300CC EEC Japan Genata ATV / Racing ATV / quad bike (GT300ST-R)
EEC No.: E4*2002/24*1705*00 FOR TWO PERSONS
ENGINE |
|
Type: |
Single-cylinder, 4-stroke, water-cooling |
Max power(kw/r/min) : |
15/6500 |
Max torque(N. M/r/min): |
22/5000 |
Bore*Stroke(mm*mm): |
72*73 |
Idle speed (r/min): |
1200 |
Min oil consumption ratio (g/kW. H): |
354 |
Displacement(ml): |
297.2 |
Compression ratio: |
10.3: 1 |
Oil capacity (L) : |
1.8+-0.1 |
Lubrication method : |
press and splash |
Ignition method: |
CDI |
Gear : |
box 1234NR |
Clutch method : |
MANUAL |
Reverse method: |
Manual reverse |
Starting method: |
electric start and hand start |
CHASSIS |
|
Brake Front/rear: |
pump disc brake |
Transmission : |
chain drive |
Front tyre: |
185/30-14 |
Rear tyre: |
270/30-14 |
Front suspension : |
Double arm swing |
Rear: |
suspension central rear shock absorber |
Seat height(mm): |
850 |
Min turn round radius(mm) : |
3000 |
Min Ground Clearance (mm) : |
120 |
Gasoline capacity(L): |
10.5 |
Stop brake : |
Machinery lock |
Battery : |
12V20Ah |
Max loading weight(kg): |
150 |
Person: |
2 |
Gasoline consumption (L/100km): |
6.2 |
Wheel base(mm) : |
1250 |
Front wheel distance(mm): |
1100 |
Rear wheel distance(mm) : |
990 |
Max speed(km/h) : |
75 |
Max climb abiilty (degree): |
25 |
Vehicle size L x W x H(mm) : |
1920*1045*1150 |
PACKING |
|
Net weight(kg): |
220 |
Gross weight (kg): |
260 |
Packing way: |
PP bag + iron frame+ carton |
Packing: |
(20'GP/40'GP /40'HQ) 12 PCS/26PCS/39PCS |
Unload : |
parts handlebar\rear shock absorber\wheel |
Carton size: |
L x W x H(mm) 1970*1130*870 |
