Specifications
Prod Model: |
DL24250-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimension: |
1065*565*880mm |
Max. Climbing Ability (Loaded): |
20% |
Passenger Capacity: |
1 |
Chassis: |
Steel |
Net Weight: |
47kg |
Motor: |
Brush |
Brake: |
Band Brake for Rear Wheel |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Voltage Of Battery: |
24V |
Certification: |
CE |
Wheel Hub: |
Alloy Hubs |
Folded: |
Folded |
Charging Time: |
6-8h |
Part: |
Motor |
Running Distance: |
10km |
Max Speed: |
7.5km/H |
Power: |
200W |
Maximum Loading Capacity: |
90kg |
Product Description

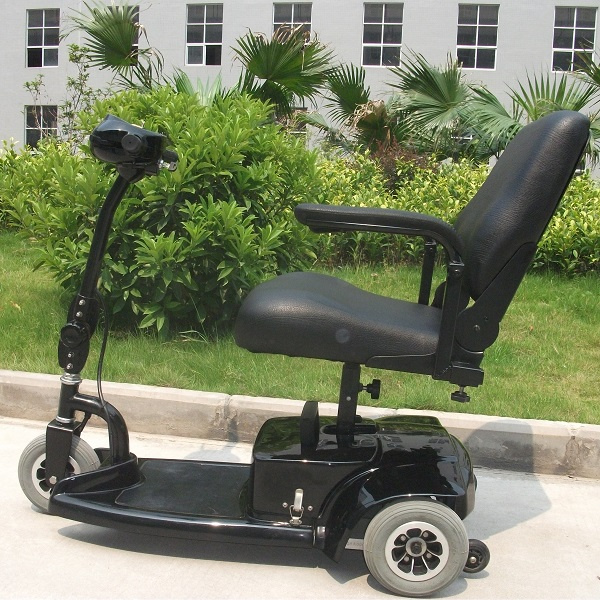

3 wheel 200w light duty electric mobility scooter (DL24250-1)
electric mobiltiy scooter features:
1.It is popular with Senior people;Mainly used on the park,travel industry, Supermarket and so on;To transport people in community;
2.Well design of the package, so the goods can be protected well;
3.Speed can be adjusted.
4.Has CE certificate for whole carts and for main parts also pass CE, UL,SAA for different carts.
electric mobility scooter specifications:
Model | DL24250-1 |
Passenger Capacity | 1 |
Power supply |
|
Battery | 12V12AH*2 |
Motor | 24V200W |
Controller | PG, 24V-45A |
Charger | 24V 2A |
Performance |
|
Max. Speed | 7.5KM/H |
Max.travelling range | 10KM |
Climbing capactity | 20% |
Brake Range | 3M |
Minmum turning radius | 1M |
Net Weight | 47KG |
Gross Weight | 52KG |
Carrying capacity | 90KG |
Dimension |
|
Tyre | 200*50 |
Normal dimensions | 1065*565*880MM |
Folded dimensions | 1000*565*700MM |
Carton dimensions | 1080*560*580MM |
Qty per container | 60PCS/126PCS/168PCS |
Optional parts | Rear basket, walking stick bracket |
