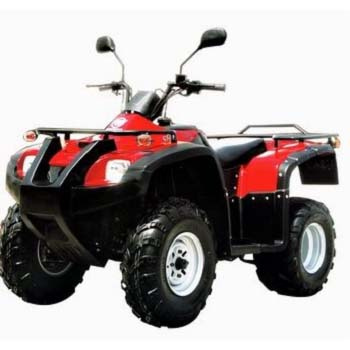

Home Kingspirits Industry Co., Ltd. 260cc Water-Cooled
Product Description
Engine type: 1-cylinder 4-strock sohcDisplacement: 255cc
Max power: 12.5km/7500kw/r/min
Max torque: 17.6kw/5500n. M/r/min
Cooling: liquid cooled
Lubrication: Wet sump
Carburetor
Ignition: C.D.I
Starting electric
Drive train
Final drive: Shaft drive
Transmission: C.V.T
Suspension
Front suspension macpherson strut with 6in travel
Rear suspension progressive rate swing arm with 7intravel
Brake
Front/rear brake single lever hydraulic disc
Auxiliary brake rear hydraulic disc
Parking hydraulic disc, all wheel
Tire
Front tire: At 24*8-12
Rear tire at: 24*11-10
Dimensions
L*w*h: 82. 5in*46in*47in/2096mm*1170mm*1170mm
Seat height: 34in /865mm
Wheel base: 49.7in /1265mm
Turn radius: 129in / 3277mm
Ground clearance: 7.5in /190mm
Dry weight: 616 lbs /280kg
Load capacity
Front rack: 40 lbs / 18kg
Rear rack: 80 lbs / 36kg
Hitch towing: 450 lbs / 200kg
Electrical
Battery: 12v 14ah
Head light: 35w/35w
Brake/tail light: 21w/5w
Kingspirits Industry Co., Ltd. is a professional manufacturer& exporter of ATV, Dirt Bike, Scooter, Go Kart, Auto Parts and accessories. We established in 2000. Combining electronic and mechanical technologies, we can supply over 50, 000 complete vehicles and 200, 000 accessories annually. Our factory covers an area of 150, 000 square meters with $15 million in fixed assets and more than 3, 000 employees.
We are aimed to "Quality and Reputation is the most important, Customer is the God, Service is foremost", we also provide good quality guarantee to clients. Rely on excellent equipment, high quality, strict control system, and are far sold to America, France, Germany, England, Japan, Spain, Sweden, ect., almost 20 countries all over the world.
We are aimed to "Quality and Reputation is the most important, Customer is the God, Service is foremost", we also provide good quality guarantee to clients. Rely on excellent equipment, high quality, strict control system, and are far sold to America, France, Germany, England, Japan, Spain, Sweden, ect., almost 20 countries all over the world.
