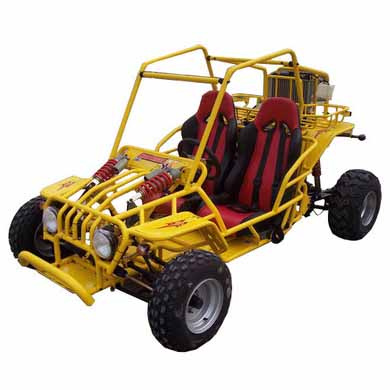

260CC EEC Go Kart Cvt With Reverse (FPG260E)

Specifications

Prod Model:	FPG260E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Start-up:	Electric
Transmission:	Shaft
Displacement:	250CC
Certification:	EEC

Product Description

260CC EEC Go Kart, CVT with Reverse (FPG260E)
Engine Type: Single-Cylinder, 4-stoke, water cooled
Transmisson System: Shaft, Inside Reverse Gear
Bore*Stroke(mm*mm): 70 x 66.8mm
Piston Displacement(ml): 260
Max. Power(Kw/rpm): 12kw/7500rpm
Max. Torque(N. M/rpm): 20 N. M. /5500rpm
Demarcate Power(kw/rpm): 12kw/7500rpm
Ignition System: C. D. I
Staring System: Electric
Transmission Type: Automatic (C. V. T system)
Min. Fuel Consume Rate(g/Kw. H): 3.5L/100km.
Lubrication Type: force & splash
Whole Dimension (mm): 2690 x 1500 x 1465mm
Axle Base(mm): 1950
Seat Height(mm): 450
Ground Clearance(mm): 220
N. W(kg): 346
G. W(kg): 370
Max. Speed(Km/h): 70
Max. Load Capacity(kg): 200
Max climb abiilty 20-25 degree
Package Dimension(mm): 2330*1270*870
Main Brake Handle Mode: Kick Brake
Emergency Brake Handle Mode: Manual Brake
Fr. Size Tyre: 21 x 8-10
R. Size Tyre: 22 x 11-10
Fuel Tank Capacity(L): 9.5
Fr. Absorber Type: Front: Oil damped and gas damped, rear: Oil damped shock absorbe
Suspension: Independent dual A-arm / Independent arm or double oil damped shock
Battery: 12V, 14A
Package type: Standard export carton, with metal frames reinforce
FOB NINGBO
Loading20'GP/40HQ: Qty/20' GP: 8PCS, Qty/40' HQ: 27PCS
