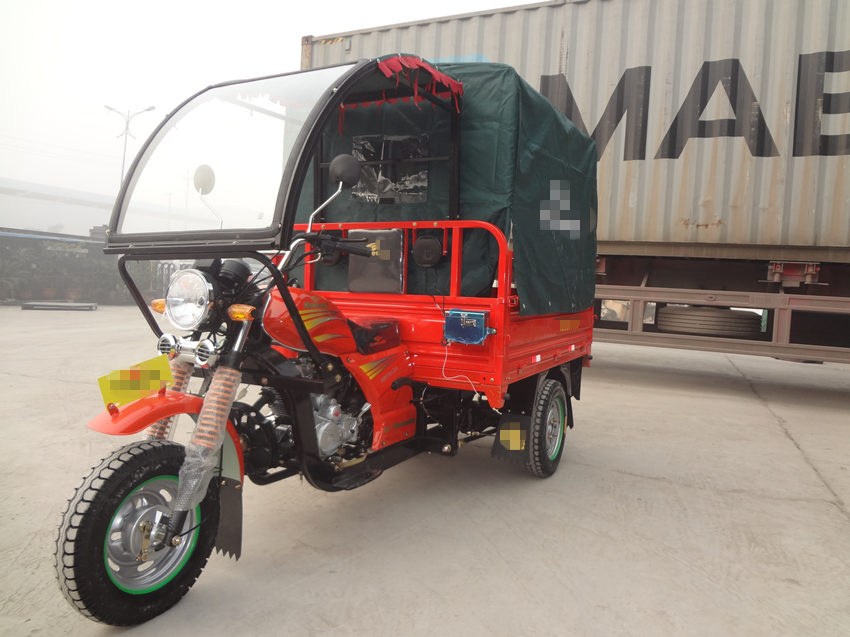

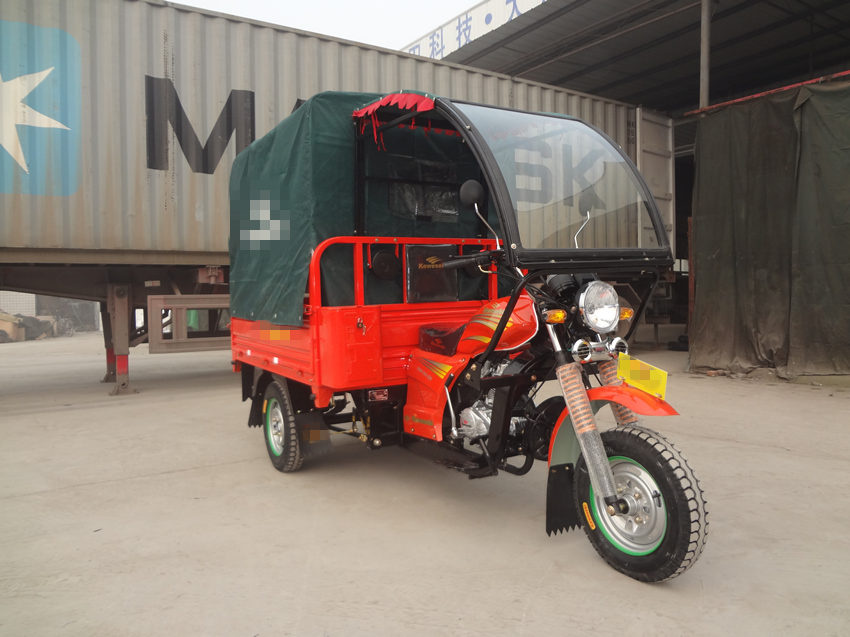

250cc Tricycle Mobility Scooter

250cc Tricycle Mobility Scooter
Price: US $ 775-800sets
Trade Terms: FOB,CFR,CIF
Min Order: 10sets
Pay Type: L/C,T/T
Prod Model: DJ150ZH-7
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia
Name: 250cc Tricycle Mobility Scooter
Brand: Ducar; Kawasaki;OEM
Loading Capacity: 300kg
Fuel: 12L
Speed: 60km/H
Max Speed: >50km/h
Displacement: 126-250CC
Engine: 4 Stroke
Maximum Loading Capacity: ≥120kg
Folded: Unfolded
Certification: CCC
Fuel Tank Capacity: 12L

Product Description

250cc Tricycle Mobility Scooter



Technical specifications for 250cc Tricycle Mobility Scooter



Chongqing   Tengtian Group

Product Name

     250cc Tricycle Mobility Scooter

Product Technical Specifications(General   Information)

Part I
  Technical Design

Application

Cargo Transport

Design Max Speed

60 km/h

Loading Capacity

300-500 kg

Unladen Kerb Weight

300 kg

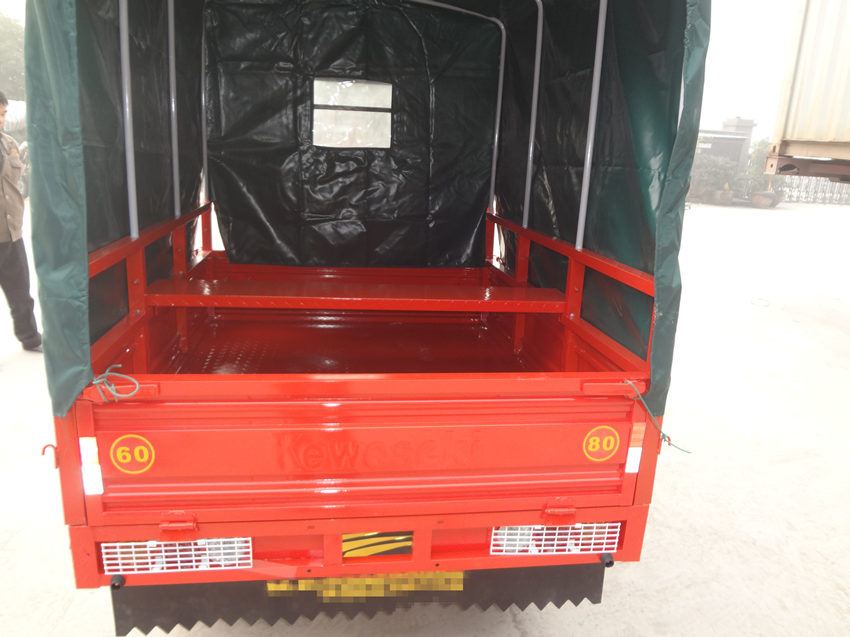

Cargo Box Dimension(L*W*H)

2000*1400*1250mm

Color

Red/Green/Yellow/Black/as you choose

Track

1100 mm

Wheel Base

2100 mm

Ground Clearance

160 mm

Brake Mode

Front&Back wheels, Drum

Transmission Type

Shaft Drive

Power

8.0 kw

Cool Type

Water Cooled

Min.Fuel Consumption

354g kw.h

Fuel Type

Gasoline

Fuel Tank Capacity

12 L

Part II
  Engine Details

Engine Type

Single cylinder,4-stroke,camshaft downward

Bore Stroke

63.5×49.5mm

Fuel Type

Gasoline

Compression Ratio

9.5:1

Rated Power&Rotating Speed

8.0 kw /8000rpm

Max.Torgue/Rotating Speed

11.0N.m /6500rpm

Lowest No-Load Speed Stability

1500rpm

Displacement(cc)

156ml

Ignition System

CDI

Apply to

Motor tricycle

Starter

Kick/Electric

Part III
  Operation

Starting System

Electric/Kick

Transmission

5 Forward &1 Reserse Gears

Gearshift Control

Manual-Foot

Clutch Method

Manual-Hand

Brake Operate Mode

Manual-Hand or Foot

Part   IV
  Packaging

Transport

By Land/Sea/Other

Port Of Loading

Chongqing/Shanghai/Other ports of china

Original Manufacturer

Chongqing Tengtian Technological Develop Co., Ltd.

Package

SKD,CKD,CBU

Loading Capacity (CKD)

22 units in 20"GP, 54 Units in 40"HQ

Delivery Time (from loading port)

20-25Days after receiving advance payment



Please Note:

*All sizes are approximate,any other sizes are available according to customers' special requests.

*For more optional details, please contact Chongqing Tengtian Technological Develop Co., Ltd.

*Any details of the motor tricycle should subject to our final confirmation before ordering.



   ............................................................................SHOW TIME..........................................................................


Brief Introduction



Economic and easy to use

Tricycles vary from size to color

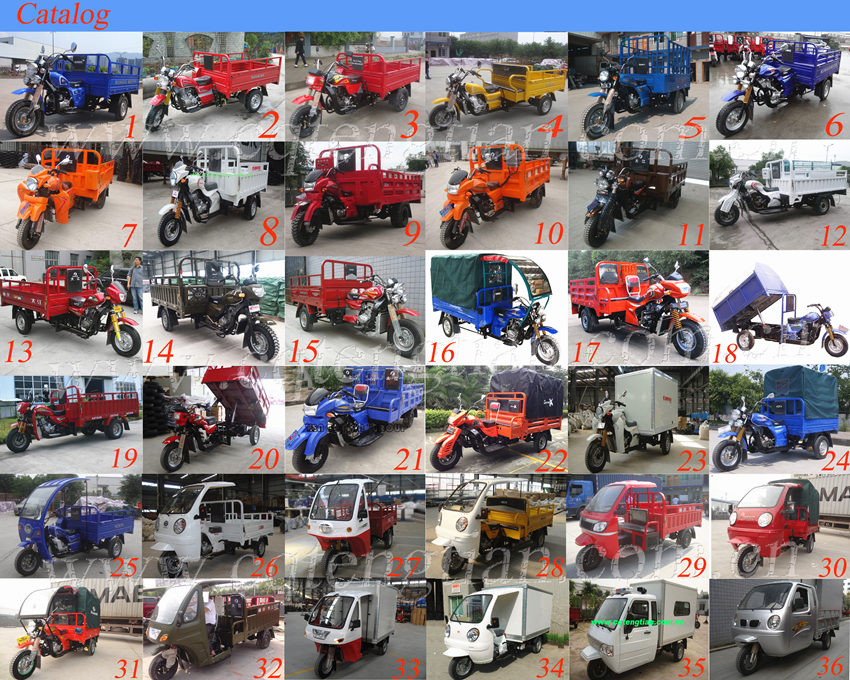

Displayed here is a selection of some of the tricycles that we have produced in the past. This is a mere fraction of the production we have done in the past and it means to give a brief introduction to our range of capabilities and experience. If you require a tricycle you do not see here, please contact us as this is just an example of our product and we can do much more.


Why should you choose us?





1. We Tengtian Technological offer outstanding products:

2. Choose us Tengtian Technological, you can get:







Contact us

Contact person: Aida Luo
Contact Way: 1, Tel.: 0086-15215054392
                        2, Web:www.cqtengtian.com
                        3, Add:Qinggang Industrial Development Zone, Bishan, Chongqing City, China










Chongqing Tengtian GROUP...Is one of the fast-developing tricycle manufacturers in China, which was established in 2005 and specialized in research, manufacture and international sales of motor tricycles. Our company occupies 13, 320 square meters and has 150 staff members.

Based on advanced inspection & production assembly lines, own professional R&D team, we can provide different sizes of tricycles with various options and annual production capability achieves 50000 sets. Via 8-year professional export experience, we have built a broad marketing channel, a solid customer foundation and our brand "DUCAR" have created an excellent business reputation in many countries and regions.

Our target international market includes Africa, Southeast Asia, South America and Middle East. To be more competitive, we have been accredited to ISO9001: 2008, and product quality well meets CCC national compulsive certification. What's more, large-scale production, systematic network sales construction and outstanding after-sales service are all our competitive advantages.

Adhering to the idea of fast, concise, personality and excellent, we will train and cultivate talents as our core competitive edge, and run our brand with more open, peaceful and serious mind.

Your success is our source. We hold the policy of quality first, users first. Warmly welcome all partners home and abroad to cooperate with us. Let's create a better future together.
