Price: | US $ 890-915sets |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10sets |
Pay Type: | L/C,T/T |
Specifications
Prod Model: | TT200ZH-8 |
---|---|
Markets: | South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |

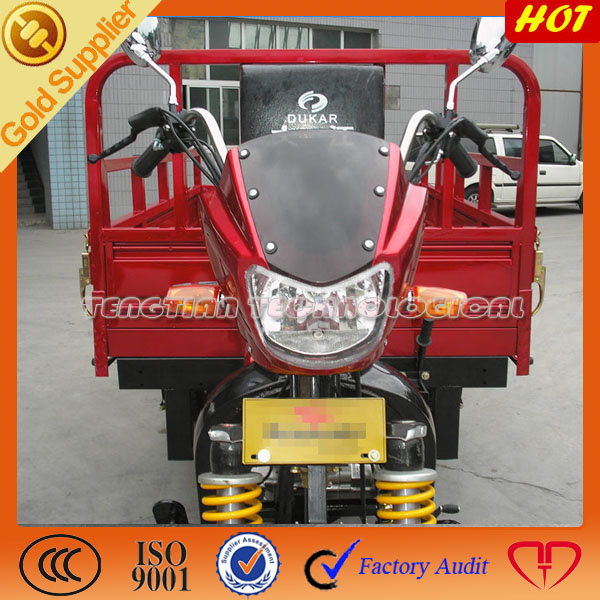

Name: | 200cc Motor Scooter 3 Wheel |
Engine Brand: | Lifan/Loncin/Zongshen |
MOQ: | 10 Sets |
Size: | 3155X1250X1430 mm |
Brand: | Ducar; Kawasaki;OEM |
Add.: | Chongqing, China |
Type: | Cargo Motorcycle |
Displacement: | 126-250CC |
Engine Type: | 4-Stroke |
Fuel: | Gas / Diesel |
Certification: | CCC |
Condition: | New |
Product Description
Part I Technical Design | Application | Cargo&passengers Transport | Part III Operation | Starting System | Electric/Kick |
Design Max Speed | ≥60 km/h | Transmission | 4 Forward &1 Reserse Gears | ||
Loading Capacity | 300-500 kg | Front suspension | Normal shock absorber arms | ||
Unladen Kerb Weight | 300 kg | Rear axle | Normal car rear axle | ||
Dimension(L*W*H) | 3555x1250x1830 mm | Tire | 4.50-12pr | ||
Cargo size(L*W) | 1600*1250mm | Rear suspension | 3+2 Leaf spring | ||
Track | 1050 mm | Gearshift Control | Manual-Foot | ||
Wheel Base | 2100 mm | Clutch Method | Manual-Hand | ||
Ground Clearance | 160 mm | Brake Operate Mode | Manual-Hand or Foot | ||
Brake Mode | Front&Back wheels, Drum | Part IV Packaging | Transport | By Land/Sea/Other | |
Transmission Type | Shaft Drive | Port Of Loading | Chongqing/Shanghai/Other ports of china | ||
Power | 8.0 kw | Original Manufacturer | Chongqing Tengtian Group | ||
Min.Fuel Consumption | <=354g kw.h | Package | CKD;SKD;CBU | ||
Fuel Type | Gasoline | Loading Capacity (SKD) | 16 units in20"GP, 36 Units in 40"HQ | ||
Fuel Tank Capacity | 12 L | Delivery Time (from loading port) | 20-25 Days after receiving advance payment | ||
Part II Engine Details | Engine Type | Single cylinder,4-stroke,camshaft downward, Lifan, 150cc aircooling | |||
Bore Stroke | 62×49.5mm | ||||
Compression Ratio | 9.5:1 | ||||
Rated Power&Rotating Speed | 8.0 kw /8000rpm | ||||
Max.Torgue/Rotating Speed | 10.5 N.m /5500rpm | ||||
Lowest No-Load Speed Stability | 1500±150rpm | ||||
Displacement(cc) | 149ml | ||||
Ignition System | C.D.I. | ||||
Apply to | Motor tricycle |
