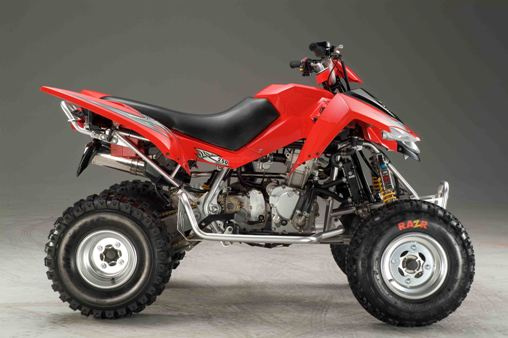

250cc Sporty ATV In The World (EC250TW)

Specifications

Prod Model:	EC250TW

Product Description

Specifications:
Engine Horizontal, 4-Stroke, Single Cylinder, Liquid Cooled, SOHC
Bore x Stroke 71x63 mm
Piston Displacement 249.3 cc
Compression Ratio 10.6: 1
Maximum Power 14.2 Kw / 6500rpm
Maximum Torque 21.8 N. M. / 6000rpm
Maximum Speed Km/hr
Starter System Electric Starter
Lubrication Auto
Transmission System CVT with reverse
Transmission Chain driver

Front Suspension Independent, double A-arm, oil-damped, 100mm suspension travel
Rear Suspension Linkage-type, oil damped, 65mm suspension travel
Overall Length 1850 mm / 72.83 inch
Overall Width 1173 mm / 46.18 inch
Overall Height 1215 mm / 47.84 inch
Wheel Base 1290 mm / 50.79 inch
Ground Clearance mm / inch
Seat Height 840 mm / 33.07 inch
Gross Weight 190 Kg / lb
Brake (Front/Rear) Dual hydraulic disc / Single hydraulic disc
Tire, Front AT 21 x 7-10
Tire, Rear AT 20 x 11-9
Ignition Type DIS, Digital / Transistorized
Fuel Tank Capacity 15 Liter (3.96 Gal. )
Carburetor MikuniTM BSR33
Body Color Black, Red, Green and Blue
Package size x x mm
Loading (40HQ) 36 units
