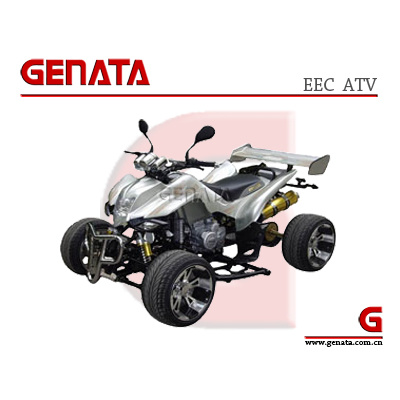

250CC EEC Racing ATV (GT250L-RE3)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR |
| Min Order: | 18/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | GT250L-RE3 |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission System: | Chain Drive |
| Transmission Type: | Manual |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 250CC |
| Structure: | Two Side Doors |
| Brake Type: | Disc Brake |
| Maximum Speed: | 80-120km/H |
Product Description
250CC Racing EEC ATV With Differential SystemJapan brand made in China.(with 4 Brake Disk and Rear axle Differential) new model high qualtiy with competitive price, 2 year warranty.
EEC approval number: E4*2002/24*2026*00 (For 2 persons)
| ENGINE | |
| Type : | 250CC, Single-cylinder, 4-stroke, water-cooling |
| Max power(kw/r/min): | 12.5/6500 |
| Max torque(N. M/r/min): | 18.5/5500 |
| Bore*Stroke(mm*mm): | 67× 65 |
| Idle speed (r/min): | 1500 |
| Compression ratio : | 10.5: 1 |
| Oil capacity (L) : | 0.9 |
| Lubrication method: | press and splash |
| Ignition method: | CDI |
| Clutch method : | MANUAL |
| Starting mode : | Electric recoil backup |
| CHASSIS | |
| Front/rear brake: | 2 disc/2 disc |
| Transmission Speed: | adjustment 4 speed with reverse |
| Front tyres: | 12 inch 235/30-14 (Alloy rims) |
| Rear tyres: | 12 inch 235/30-14 (Alloy rims) |
| Front suspension: | Double wishbone suspension |
| Rear suspension: | Mono shock swing-arm |
| Final drive : | chain drive |
| Front track(mm): | 810 |
| Rear track(mm): | 760 |
| Seat height(mm): | 810 |
| Min turn round radius(mm): | 3000 |
| Min Ground Clearance (mm): | 110 |
| Gasoline capacity(L): | 5 |
| Fuel No. : | RQ 90 |
| Stop brake: | Machinery lock |
| Battery : | 12V14Ah |
| Max loading weight(kg): | 160 |
| Person : | 2 |
| Max speed(km/h): | 80-120 |
| Max climb abiilty (° ): | 30° |
| Vehicle size L x W x H(mm): | 1900 x 1115 x 886 |
| PACKING | |
| Net weight(kg) : | 175 |
| Gross weight (kg): | 220 |
| Packing way : | PP bag + iron frame+ carton |
| Packing(20'GP /40'HQ): | 18 PCS/42 PCS |
| Unload parts : | handlebar\rear shock absorber\wheel |
| Carton size L x W x H(mm): | 1720 x 1130 x 760 |
| OTHERS | |
| Option color: | Metallic Red, Metallic Blue, Metalic Black, Metallic Silver, Metallic White, Metallic Green, Metallic Orange |
