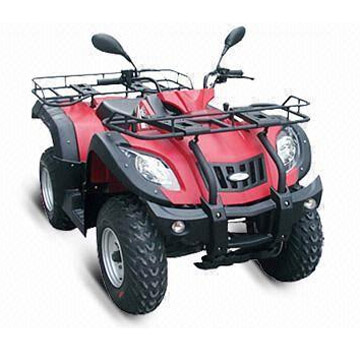

250cc EEC ATV with Yamaha JV Engine (FA250E-5)

Specifications

Prod Model:	FA250E-5

Product Description

Size (LXWXH): 1960X1010X1120
Wheelbase: 1160
Seat Height: 780
Ground Clearance: 155
Dmin Turning: 2900
Fuel Capacity (l): 12L
Wheels Front/rear: Vacuum
Types Front: AT22X7-10/20kPA
Types Rear AT22X10-10/25Kpa
Suspensions Front/Rear: Suspension rod/rotary rod
Brakes Front: Disk brake/right hand operation
Brakes Rear: Drum brake/foot operation and left hand operation
Dry Weight : 220kg
Max. Loading: 165kg
Brake distance: 7m/30km/h
Min fuel: 2. 5L/100km
Maximum speed: 65 km/h
Max angle: ≥25
Engine type: Single-cylinderAir-cooled, 4-stroke,
Engine model: JS171FMM-3/JIANSHE
BoreXStroke: 71X58
Displacement: 229. 6cm3
Compression Ratio: 8. 7: 1
Carburetor: Vacuum film piece type
Rated power: 10. 0kw(7000r/min)
Max. Torque : 15. 0N. M(5500r/min)
Ignition: CDI
Starter: Hand pulled recoil starter/electric starter
Shift type: 5 speed front driving and 1 speed reverse driving
Transmission ratio: 2. 838/1. 789/1. 318/1. 040/0. 821 and 41. 5
Transmission type: Axle/Shaft
Clutch: Wet automatic centrifugal clutch
Gasoline: RQ-90 GB17930-2000
Lubrication Oil capacity of engine: 1. 8L
Lubrication: Press/Splash
Spark plug: D7RTC
Battery type: 12V 14Ah
