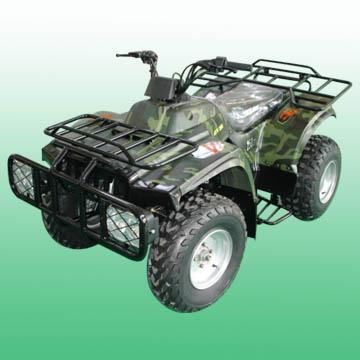

250cc ATV

Specifications

Product Description

Product size: 1, 890 x 1040 x 1, 060mm
Wheelbase: 1, 180mm
Engine type: double cylinder, air-cooling, four-stroke
Start mode: electric
Power: 10.8kW/8, 500rpm
Max torque: 13N. m/7000rpm
Max speed: >=60kph
Mini ground clearance: 135mm
Dry weight: 230kg
Transmission mode: chain
Break type (F/R): drum/drum
Climb degree: >=25 degrees
Tank capacity: 8.9L
Specification of tire:
Front-wheel drive: 23 x 7-10
Rear wheel: 22 x 10-10
Displacement: 233.9mL
Shift gear: five gear, manual
Ignition mode: CDI
Loading capacity: 160kg
Engine oil: 1.6L
Packing dimensions: 1, 940 x 1060 x 870mm
