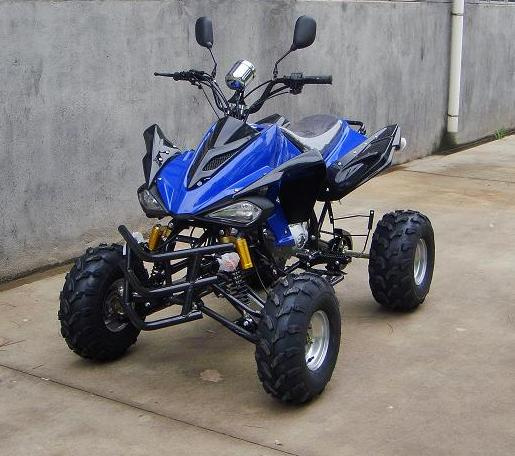

Home Yongkang Dingchang Industry & Trade Co., Ltd. 250CC ATV (XW-A32)
| Prod Model: | XW-A32 |
|---|
Product Description
1) Dimensions (L x W x H): 1, 620 x 1, 020 x 1, 120mm2) Wheelbase: 1, 220mm
3) Seat height: 850mm
4) Ground clearance: 280mm
5) Rated loading: 150kg
6) Max. Speed: 75km/h,
7) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
8) Break type (F/R): Front/disk
9) Fuel tank capacity: 3.5L
10) Power source: 12V, 9Ah
11) Engine type: 250CC, single cylinder,air cooled, 4-stroke
12) Cylinder size: 63.5 x 62.2mm
13) Compression proportion: 10.5: 1
14) Displacement: 249ml
15) Max Power: 11.0kW/7, 500r/min,
16) Max. Torque: 14.2N. M/6, 000r/min
17) Transmission mode: Chain
18) Engine oil: 0.9L
19) Min. Turning radius: 2, 750mm
20) Parking trig: Mechanical lock
21) Ignition mode: CDI
22) Transmission: 4 gears with one reverse gear, manual clutch
23) Max. Number of riders: 1
24) Lubrication: Press splash
25) Start mode: Electric
Outer packing:
Carton dimensions: 1480 x 840 x 846mm
Conveyance:
Qty/20 GP: 29 units
Qty/40 GP: 64 units
Qty/40 HQ: 66 units
Yongkang Dingchang Industry & Trade Co., Ltd. is located in Yongkang, Jinhua, Zhejiang. Specialized in manufacturing ATV, dirt bike, go kart, pocket bike, chopper and other special vehicles. Now the power of our ATV is from 50cc to 250cc. We own a professional and efficient R&D team, they are striving for developing more ATVs which have more large power.
Our products have passed ISO9001: 2000 system, EEC, CE. All products are sold well in EU, U. S. A & UK market and become one of the most popular leisure transportation tools in modern life for high quality and excellent after service.
Welcome to choose our products and look forward to entering into good business relationship and establishing long term cooperation with your side.
Our products have passed ISO9001: 2000 system, EEC, CE. All products are sold well in EU, U. S. A & UK market and become one of the most popular leisure transportation tools in modern life for high quality and excellent after service.
Welcome to choose our products and look forward to entering into good business relationship and establishing long term cooperation with your side.
