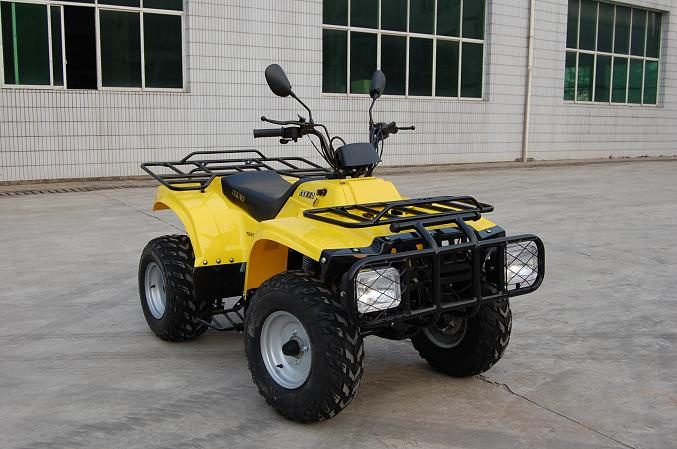

250CC ATV, Utility Style (SJ250ST-1)
| Price: | Negotiable |
|---|---|
| Trade Terms: | By Sea |
| Min Order: | 10Units |
Specifications
| Prod Model: | SJ250ST-1 |
|---|
Product Description
Model: SJ250ST-1Main Feature: 250cc, 4-stroke, air-cooling, dual cylinder dual exhaust, manual cutch, electric start, international gear, chain drive, single rocking arm, front & rear drum brake, with fan.
Specifications:
Engine type: Dual cylinder, air cooling, 4 stroke
Clutch: Manual wet multi-plate
Ignition method: C. D. I.
Start method: Electric
Transmission: Chain
Displacement(ml): 233
Bore*stroke(mm): 53*53
Compression ratio: 9.2: 1
Rated power(kw/r/min): 12/8500
Maximum torque(N. M/r/min): 14/6000
Lubrication: Splash
Gear: 5
Dimensions(L*W*H)(mm): 1920*1030*1120
Wheel base(mm): 1180
Seat height(mm): 820
Min. Turning radius(mm): 2900
Min. Ground clearance(mm): 140
Brake: Front & rear drum
Front wheel: 23*7-10 Rear wheel: 22*10-10
Fuel tank capacity(L): 8.6
Engine oil capacity(ml): 900
Climbing capacity: 20
Max. Load(kg): 160
Max. Speed(kw/h): 55
Net weight(kg): 210
Gross weight(kg): 240
