Specifications
Product Description
We are the professional manufacturer of ATV/QUAD Bikes, dirt bike, pocket bike, mini bike, chopper, electric scooter, gas scooter and other sports & entertainment products.

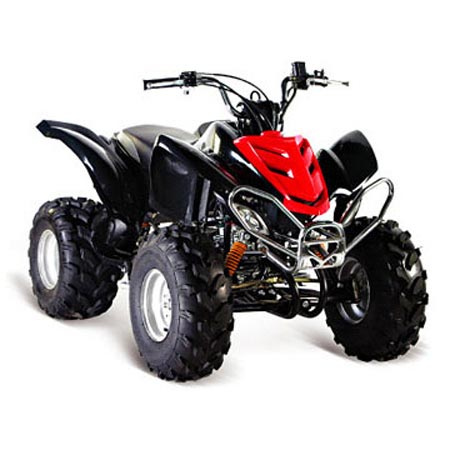

HL-A419A
Key Specifications/Special Features:
Engine: Single Cylinder, 4 Stroke, Forced Air-cooled
Engine Displacemnet(ml): 229
Bore x Stroke: 68.5mm x 62.2mm
Max Power(km/r/min): 12/7500
Max Touque(r/min): 15/6000
Transmission:
Start Mode: Electric start
Transmission Mode: Chain
Brake Mode: Drum/Disc
Brake Distance(m/30km): 7
Shift Speed Type: Five, With Reverse Gear
Clutch Mode: Manual
External condition:
Length X Width X Height(mm): 1590x870x990
Minimum Turning Radius(mm): 3000
Climbing Degree: 35
Lamp: Head Lamp
Seat Height(mm): 670
Minimum Ground Clearance(mm): 120
Top Speed(Km/h): 75
Tire Dimension(Front/Rear): AT19*7-8/AT18*9.5-8
Cover Material: PP
Color: Red/Blue/Green/Black/Yellow
Packing:
Carton dimensions: 1480 x 850 x 780mm
N. W.: 130KG
G. W.: 155KG
Container: 30pcs/20ft; 66pcs/40ft
