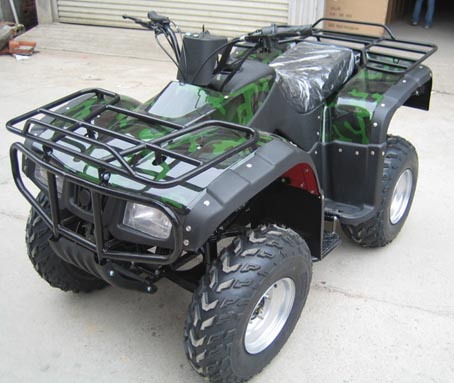

Home Yongkang Hengli Electronics Co., Ltd. 250CC ATV (ATV250)
Specifications
| Prod Model: | ATV250 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: | Gas / Diesel |
| Certification: | CE |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Automatic |
| Displacement: | 250CC |
Product Description
ATV250Key Specifications/Special Features:
Engine Type: Single Cylinder, 4 Stroke Air Cooled SOHC
Overall Length(mm): 1940
Overall Width(mm): 1050
Overall Height(mm): 1160
Seat Height(mm): 810
Wheel Base(mm): 1160
Ground Clearance (mm): 155
Minimum Turning Radius(mm): 2900
Bore × Stroke(mm): 71× 58
Displacement(cc): 229.6
Corrected Compression Ratio: 8.7: 1
Carburetor Type/Quantity: MV30_TEIKEI/1
Maximum Power (kW/r/m): 10.5/6500
Maximum Torque (N. M/r/min): 16/6000
Starting System: Electric Starter & Recoil Starter
Ignition System: C. D. I.
Lubrication System: Force & Splash
Transmission System: 5-Speed with Reverse
Transmission Operation Type: Left Foot Operation
Spark Plug Type/Manufacturer: D8EA
Spark Plug Gap (mm): 0.6-0.7
Clutch Type: Automatically
Fuel Type: RQ90 (unleaded)
Lubricate Oil Type: SAE 5W/30-15W/40
Maximum Load (kg): 165
Fuel Tank Capacity (L): 12
Engine Oil Capacity (L): 1.6
Battery Type/Capacity: 12V/9Ah
Headlight: 12V/25W/25W× 2
Tail Light: 12V /3.0W× 1
Top Speed (Km/h): 75
Front/Rear Brake: Drum/Drum (Disc/Drum)
Front/Rear Brake Operation: Right Hand Operation/Left Hand & Right Foot Operation
Front/Rear Tire Size: AT23× 7-10/AT22× 10-10
Front/Rear Tire Type: Tubeless
Front Tire Pressure (kPa): 20
Rear Tire Pressure (kPa): 25
Front Shock Absorber: Coil Spring/ Oil Damper
Rear Shock Absorber: Coil Spring/Oil Damper
Front Suspension: Leading Arm
Rear Suspension: Swing Arm
Final Transmission Type: Chain Drive(Or Shaft Drive)
G. W. /N. W.: 280Kg/240Kg
Carton Dimension(mm): 1960*1100*860MM
Container Loading Capacity: 36 Units/40 HQ
