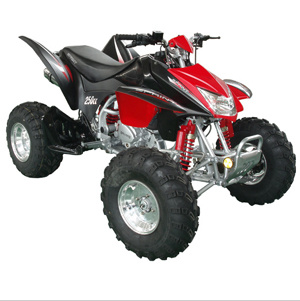

250CC ATV (LB250S-11)

Specifications

Product Description

LB250S-11
ATV Engine
Type: single cylinder,water-cooled,4-stroke
Ignition mode: CDI
Compression proportion: 10.0:1
Start mode: electric
Fuel tank capacity: 4L
Transmission mode: chain
Power:11.5KW/6500r/min
Max. torque: 17.5N.m/5500r/min
Min .ground clearance: 120mm
Max. speed: >75km/h
Power source: 12V, 9Ah
Transmission: 4 gears with one reverse gear,manual clutch
Cylinder size: 63.5 x 62.2mm
Engine oil: 1L
Lubrication: press splash
Displacement: 2229.2ml
Parking trig: mechanical lock
Gas cylinder number: 1

Chassis
Front wheels: 21 x 7-10
Rear wheels: 20 x 10-10
Break type(F/R):drum/disc
Front hanging: integral ballonet absorber
Rear hanging: inner ballonet absorber

Dimensions
Product dimensions: 1800 x 1120 x 1130mm
Carton dimensions: 1470 x 850 x 880mm
Wheelbase: 1150mm
Height of seats: 880mm
Dry weight: 155kg
Climbing degree: >20
Min. turning radius: 2650mm
Max. number of riders: 1
Conveyance: Qty/20 GP: 20units
Qty/40 GP: 44 units
Qty/40 HQ: 66 units
