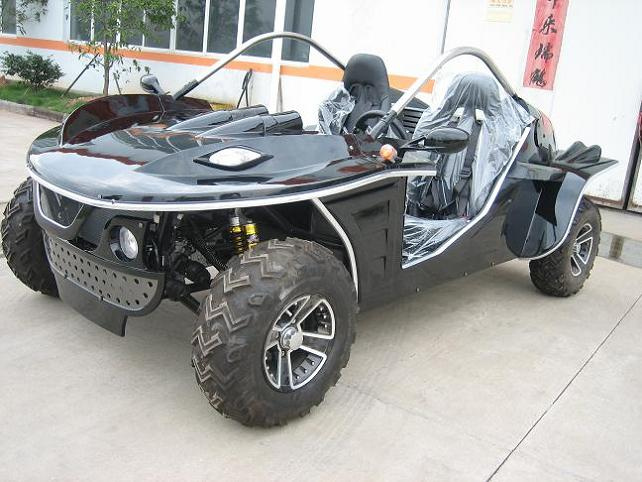

Home Selowo Co., Ltd. UTV 800 Buggy (SLW-800BUGGY)
Specifications
| Prod Model: | SLW-800BUGGY |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start-up: | Electric |
| Transmission: | Shaft |
| Certification: | CE |
| Displacement: | 800CC |
Product Description
ENGINEType: 3 cylinders, 4-stroke, liquid-cooled
Bore x Stroke: 66.5mm x 72mm
Displacement: 812CC
Compression ratio: 9.5: 1
Max Power: 43/6000(kw/r/min)
Maximum Torque: 70 N. M /(3500~4000rpm)
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
CHASSIS etc:
Transmission: Manual clutch, 5 shift/reverse
Driving wheel: 4 wheel drive and 2 wheel drive selectable
Suspension, front/rear: Front shock absorb with reservior suspension, rear spring suspension
Brakes, front/rear: Hydraulic disc brake both front and rear
Tires, front/rear: 27*11-14 both front and rear
Fuel capacity: 30L
G. W/N. W: 600KGS/570KGS
DIMENSIONS:
Wheelbase: 2350mm
LENGTH 3250mm
WIDTH 1700mm
HEIGHT 1360mm
Min ground clearance: 250mm
Max speed: 100kms/h
CONTAINER LOADS
20' CONTAINER: 2 PCS
40' HQ CONTAINER: 6 PCS
