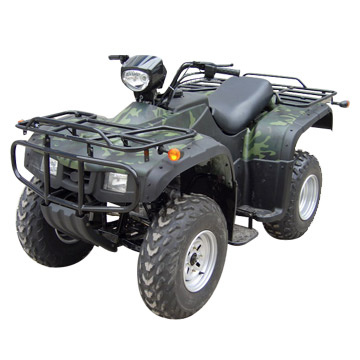

Home Chongqing Longting Power Equipment Co., Ltd. 250 ATV-EC
Product Description
Engine Type: 4-Strokes. AirCooledTransmission System: Shaft Drive
Bore x Stroke(mm): 71 x 58
Piston Displacement(ml): 229.6
Maximum Power(kw/r/min): 10.5/6000-7050
Maximum Torque(N. M./r/min): 16/5500-6500
Starting System: Electric. Recoil Backup
Transmission: 5 Speeds. Semi Automatic
Seat Height(mm): 810
Min Turning Radius(mm): 2900
Ground Clearance(mm): 220
Brake(Front/Rear): Disc/Drum
Tyre, Front: AT 23 X 7-10
Tyre, Rear: AT 22 X 10-10
Ignition Type: C. D. I
Fuel Tank Capacity(L): 12
Front Suspension: Leading Arm
Rear Suspension: Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 165
Engine Oil Capacity(L): 1.6
Gear Oil Capacity(L): 0.27
Dry Weight(kg): 240
Rider Capacity: 2 Person
Wheel Base: 1160
Overall Height(mm): 1140
Lubrication: Pressure
Overall Length(mm): 1880
Overall Width(mm): 1040
Compression Ration: 8.7: 1
Cylinder Arrangement: Single Cylinder
LONGTING Company is equipped with the most advanced techniques of developing and manufacturing CROSSBIKE and ATV, one advanced assembling and packing process assembly line, two specific testing assembly lines and devices. The products are manufactured strictly by the level of ISO9001 and the annual output is 50000 sets. The company is one of the professionally export-oriented enterprises in Chongqing. Its core markets have been widely promoted in the USA, the UK, Spain, France, Germany, Australia and South Africa, etc. The series of ATV are ATV50, ATV90, ATV110, ATV125, ATV150, ATV200 and ATV250, as well as CROSSBIKE including PY50, PY80, PY90 and PY110, GK250. Currently, the company is developing ATV with larger displacement.
