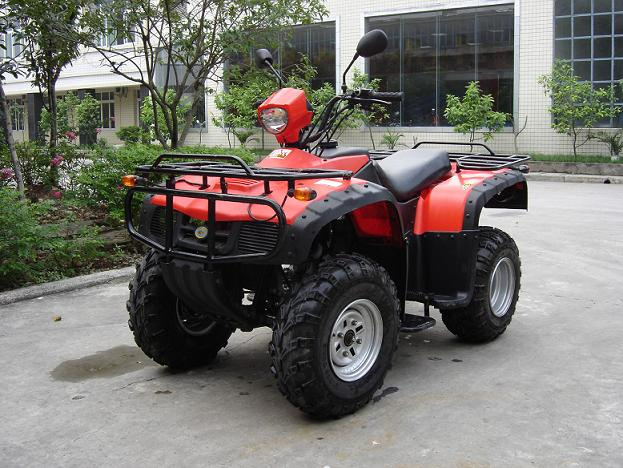

Home Cinhai International Group 25 ATV with EEC (ATV250S-3 EEC)
Specifications
| Prod Model: | ATV250S-3 EEC |
|---|
Product Description
Description: Shift gear, Reverse, Munual ClutchENGINE TYPE Single cylinders, air-cooling, Fourth stroke
L * W* H)mm) 1880*1040*1140 Max-speed: ≥80
Wheelbase(mm) 1160 Dry weight(Kg): 240
Start mode Electric/Electric manual Transmission mode: Axis
Power (kW/r/min) 9.9KW/6500r/min Break type(F/R): Disc/Drum
Max-Torque (N. M/r/min) 14/6000r/min Specification: 12V 14Ah
Mini Ground Clearance (mm) 155 Climb degree: ≥25
Front hanging Arm-swing Tank capacity (L): 12
Rear hanging Integral cylinder diameter*journey(mm): 71*58
Ignition mode C. D. I Displacement (ml): 229.6
Loading capacity(kg) 165 Shift Gear: Five gear, utomatic
Engine oil (L) 1.6 Height of seats(mm): 820
Specification of tyre Front-wheel drive 23*7-10; Smallest turning semidiameter 2900(mm)
Rear wheel 22*10-10 Parking trig: Mechanic lock
Compression proportion 8.7: 1 Gear wheel oil (L): 0.25
Quantity of loading 20' GP: 12 units Person: 1
40' GP: 24 units Lubrication Press splash
40' HQ: 36 units Gas cylinder number 1
Parking dimension(mm) 1970*1110*880
