Specifications
Prod Model: |
PW-8F20 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Folding: |
5-Seconds Folding/Unfolding!! |
Motor: |
24V180wx2(Brushless/Gear) |
Battery: |
LFP24V10ah with Charger |
Max Speed: |
8km/H |
Range: |
15~20km |
Slope: |
12% |
Lifetime: |
5 Years Long Life |
High Load Capacity: |
120kg |
Package: |
80*36*64cm |
Weight: |
30kg(with Battery) |
Climbing Capability: |
12?? |
Accessories: |
Basket |
Certification: |
CE |
Folded: |
Folded |
Voltage: |
24V |
Load Capacity: |
>120kg |
Product Description

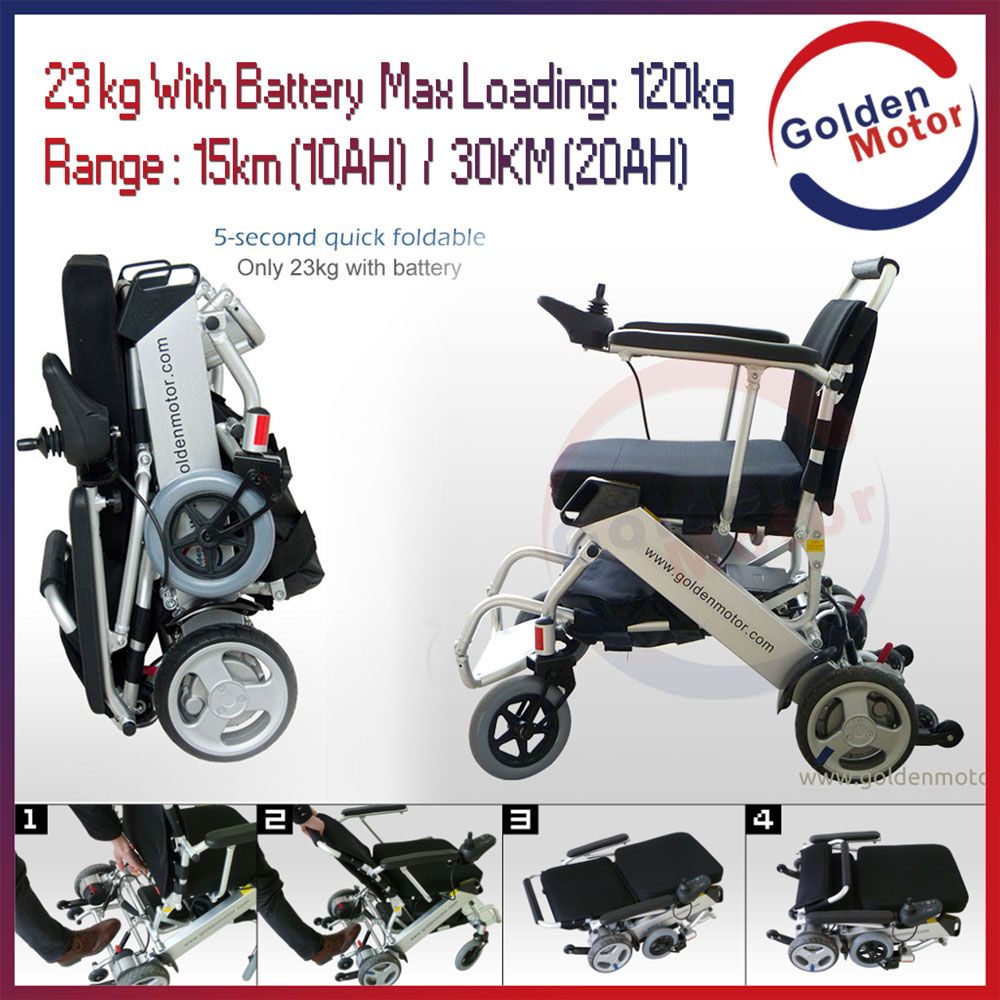

30kg lightweight mute foldable powerful electric wheelchair
E-wheelchair Foldable (8''Brushless Motor)
Brushless E-Wheelchair
Wheelchair Technology Revolution!
5-Seconds Folding/Unfolding!
Lightest(23kg)!
10 Times Longer Life!
High Efficiency Brushless Motor!
Model: PW-8F20 (8'' wheel)
5-seconds folding/unfolding! !
Motor: 24V180Wx2(Brushless/Gear)
Battery: LFP24V10Ah with charger
Max Speed: 8km/h
Range: 15~20km
Slope: 12%
Lifetime: 5 years long life
High load capacity: 120kg
N. Weight: 23kg(without battery)
G. Weight: 30kg(with battery)
Package: 80*36*64cm
Customer's Experience about this innovative folding wheelchair
"I just recently purchased a PW-8F20 wheelchair and with the batteries arriving Tuesday I have been using it for the last 2 days. I have to congratulate Golden Motors on the design of this chair. It is brilliant in the way it folds so easily, so small and light, perfect for travel and strong enough for many everyday uses. You can say that I am a very pleased customer. " -- Greg Burge, USA
It is extremely convenient due to its compact size and ability to be folded for transport in just about any vehicle: A Car, Truck, SUV. It is also convenient enough to take on an Train, Bus, Cruise Ship or Airplane. The chair can go just about anywhere - Indoors or Outdoors.
This unique joystick controller drives dual BRUSHLESS motors intelligently by programmed microchip. This extends your wheelchair life up to 10 times longer than current brushed motor powered wheelchairs in the market.
All-in-One, programmable Controller
24Vdc, Maximum 50Amps
5 Speed Settings
Regenerative Braking
Parking Brake Open Circuit Detection
Parking Brake Manual Release Microswitch Detection
Including all connectors to motors and charger
Foldable Power Wheelchairs - eXtra Miles Series
CE Certificates: EMC LVD MD
If you are involved with high performance EV applications, there is an important motor technology which is pancake motor (or disc shaped motor) from GoldenMotor. What separates the pancake motor from conventional axial motor is its slotless disc armature. This difference enables pancake motors to deliver a level of performance which is not attainable with conventional ironcore motor designs used by most traditional power wheelchairs in today's market. In addition to performance advantages, pancake motors have a unique flat & compact shape that is best fit for motorized wheel applications, such as power wheelchairs, power scooters. The unique advantages that the slotless pancake motor technology has brought include:
Very long operating life
Absolutely zero cogging for ultra smooth velocity & torque even at slow speeds
Low armature mass for high accelerations and decelerations
Low inductance for almost instantaneous torque
Very high peak torques for rapid accelerations
Flat motor profile for extremely compact size
Stamped winding technology for very high reliability and low cost
Low Electrical Noise
More details please vist our website and feel free to connect with me---Johnny Landau
