Specifications
Prod Model: |
KG200-F |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: |
Kyngo or OEM |
Color: |
Red/Black/Blue/Orange |
Product Description
200cc engine with balance shaft transport street racing motorcycle with central back absorber /air wheelTechnical Data: |
|
Engine: | single cylinder, 4-stroke,air cooling |
engine model No | 164FML |
Displacement | 200cc |
bore*stroke | 63.5*62.2 |
Max torque | 14.5N.m/7000r/min |
standard power | 10Kw/7500r/min |
Primary Velocity ratio | 4.055 |
clutch type | manual |
lubrication | press splash |
lubrication oil vol | 0.8 |
valve gap | in:0.03, out: 0.05 |
brake type | fron disc / rear drum |
start type | electric / kick |
compress ration | 9.2:1 |
start time | ≤15s |
N.W | 140 |
standard loading | 150 |
Max speed | 100 |
min fuel cons. | ≤2.3 |
fuel tank vol | 12.5 |
fuel size | 90# |
spark sixe | D8RTC |
spark gap | 0.6~0.7 |
tyire size | (front)100/80-17 |
(rear)140/60-17 |
tyire pressure | F:280, R:280 |
dimension(L*W*H ) | 1975×770×1045mm |
wheel base | 1360 |
ground distance | 160 |
brake distance | ≤7m/30km/h |
climb | ≥18° |
start type | C.D.I |
seat height | 780 |
other velocity ratios | Gear 1 :2.769 |
Gear 2 :1.882 |
Gear 3 :1.400 |
Gear 4 :1.130 |
Gear 1 :0.960 |
loading qty:skd packing: | 78SETS/40HQ |
Description:

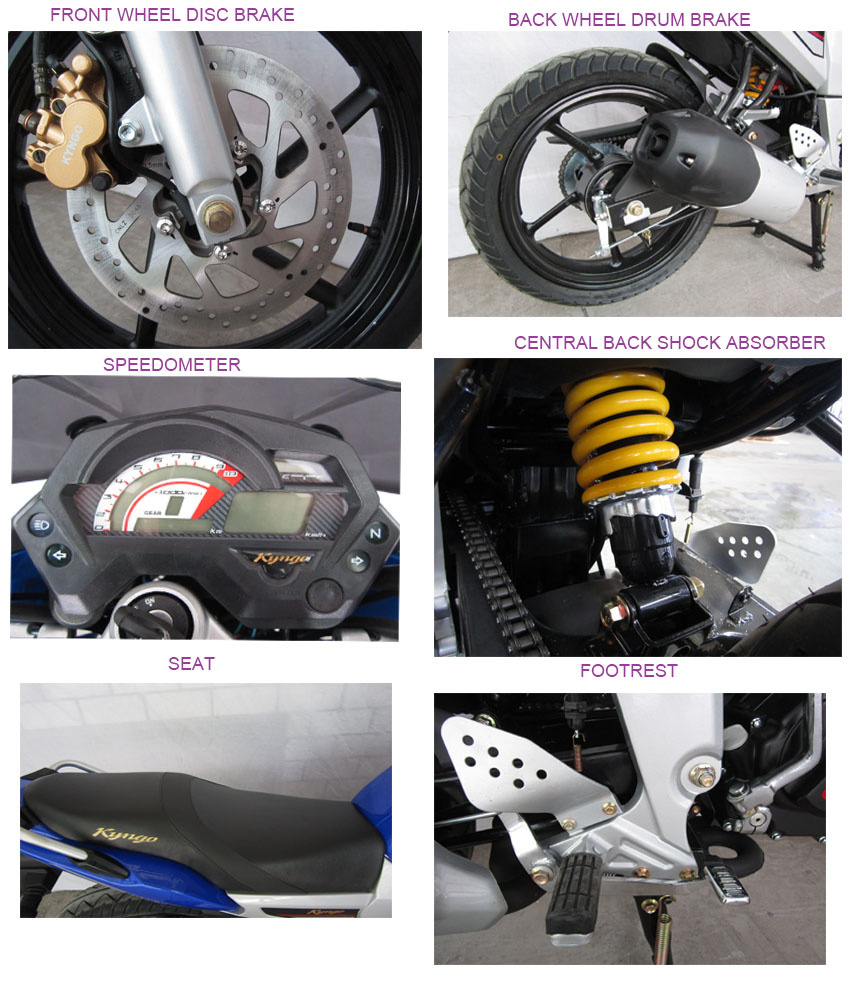

1.CG 200cc single cylinder, 4-stroke,air cooling engine with balance,low shake
2.alloy rim with disc brake
3.YUANXING wheel front:100/80-17 rear:140/60-17
4.digital LED speedometer
5.LED turn light
6.middle set back shock absorber ,springback fast
7.with remote control
8.competitive price\good delivery\high quality.
9. We support OEM, ODM, SKD, CKD or whole parts form and support customers' Logo and stickers.
Optional:250cc engine/
new headlight Packaging / Delivery /payment /shipping :
1. Packaging details:
CBU/SKD packing: Steel Cage+ Standard Export Cartons
CKD packing: engine used carton packing and be separated to the body part. Body parts are packaged with carton or with plywood box one unit by one package.
2. Delivery: 40 days after the receipt of the deposit3. Payment: T/T 30% deposit in advance, 70% balance against the copy B/L4. SHIPPING: BY SEA
